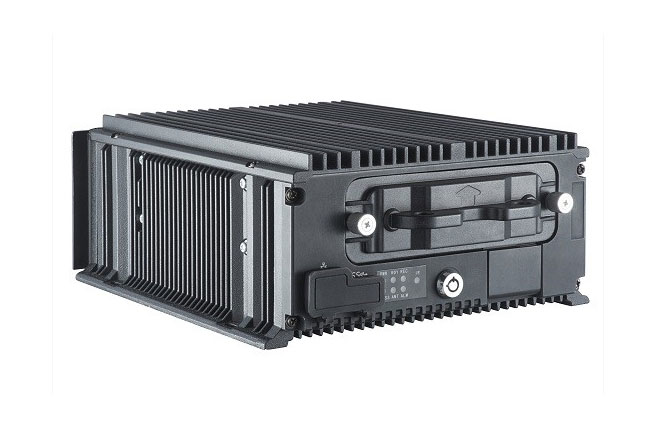

HIKVISION DS-MP7608HN

Video/Audio Input

• IP Camera16 in total: 8 IP cameras connected via PoE interfaces, 8 IP cameras extendable via PoE interfaces
• Two-Way Audio1, integrated in EXT.DEV interface

Video/Audio Output

• Video Output1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768)
• Audio Output1

Storage

• HDD/SSD

  2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD

  Dummy HDD with USB 3.0 interface

• SD Card1 × SD card, up to 256 GB

External Interface

• Network Interface2 × 10M/100M/1000M RJ45 Ethernet interface
• USB Interface

  Front panel: 1 × USB 3.0

  Rear panel: 1 × USB 2.0 of 5-pin aviation plug

• Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input (reserved)
• Alarm Output2 relay signal outputs
• Serial Port2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface)
• CAN Interface2
• Sensor-In4 high/low level signal inputs

Wireless Network

• 3G/4G Dialing1 × 3G/4G card slot, 1 × Rosenberger antenna
• Wi-Fi

  WI58 model: 2 × 5.8 G Wi-Fi SMA antenna

  WI model: 1 × 2.4 G Wi-Fi SMA antenna

General

• Working Temperature

  Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F)

  Other devices: -10 °C to +60 °C (14 °F to 140°F)

• Working Humidity10% to 95%
• Power Supply9 to 32 VDC
• Consumption

  Standby: ≤ 0.5 W

  Full load: ≤ 99 W

  Note: Without peripheral and storage media ≤ 20 W

• Operating MethodMouse, IR remote control, Web control, and touchscreen
• Dimensions (W × D × H)202 × 267.6 × 93.9 mm (7.95 × 10.5 × 3.7 inch)
• Weight (Without Storage Media)3.66 kg (8.07 lb)

Positioning

• GNSS (Global Navigation Satellite System)GPS (Global Positioning System), 1 × Rosenberger antenna

Encoding/Decoding Parameters

• Video CompressionH.264, H.265
• Encoding ResolutionMain stream: 1080p/720p/WD1/4CIF, sub-stream: 4CIF/2CIF/CIF
• Frame RatePAL: 1 to 25fps; NTSC: 1 to 30fps
• Audio CompressionG.722
• Stream TypeVideo, video & audio
• Audio Bitrate16 Kbps
• Dual StreamSupported

PoE

• PoE Interface8 × RJ45 PoE interface
• Max. Consumption51 W
