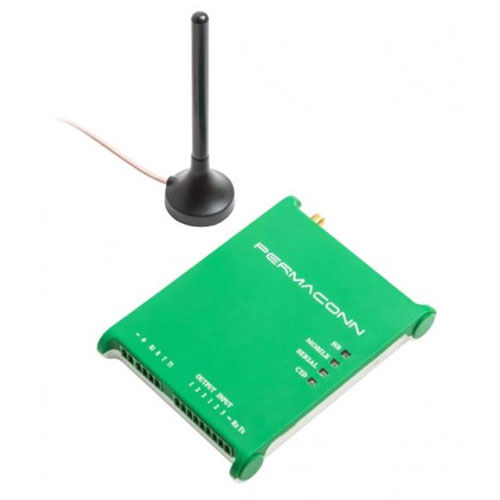

PERMACONN PM24-4G

PM24 4G Alarm communicator

SKU: 106-394

Overview
Features
Specifications

Single SIM 4G

The smallest and most cost-effective single SIM Communicator in Australia.

This Communicator is compatible with any Contact ID enabled alarm panel.

The PM24 incorporates the latest technology available today - alarms and signals are transmitted over the CAT M1 IoT network, that forms part of the 4GX network.

Key Features

Innovative: Uses the latest Cat M1 network designed for machine-to-machine comms
Higher Performance: Longer range and 20% greater penetration into buildings
Lower Power Consumption: Easily powered by the alarm panel
No Drilling or Screws: Attaches magnetically to the alarm panel enclosure
Smartphone Control: Works with Pocket Secure and Atlas

Additional Features

Small size - Fits inside alarm panel enclosure and suitable for ATM & M2M applications
Secure VPN within Telstra network - Dedicated for Permaconn events only
AES128 encryption for alarm data - Secure alarm signalling
Various diagnostic LEDs - Easy installation
Activate, control and diagnose PM24 using Atlas portal - Seamless installation process
Internal watchdog reset function - No unnecessary service call-outs
Monitors & reports dialler interface lead status - secure interface from alarm panel dialler to Permaconn
Outputs can be configured to arm/disarm the alarm system, control gates and lights. ‘Pocket Secure’ smartphone app controls these functions

Housing Material	ABS Plastic - Greeg
Dimensions	108mm (H) x 15.5mm (D) 80mm (W)
Weight	80g
LTE FDD	B3 / B28
Power	8 - 15V DC Terminal Supply
Power Consumption	Standby: 0.04A @13.8v DC, Transmitting: 0.19A @13.8v DC
Modem	Quectel BG96
Auxiliary Input	3x 24hr inputs – state change Detected every second EOL 3.3K
Auxiliary Output	3x Open Collector outputs @ 50mA (max)
Function	Control using Atlas web portal and/or “Pocket Secure” App
Data Security	AES128 Encryption
Approvals	EN62311: 2008, AS/NZS 2772.2: 2016, AS/NZS 60950.1:2015 AS/NZS CISPR 22: 2009+A1: 2010 AS/CA S042.4: 2015, AS/NZS 60950.1:2015 EN 55032: 2015, EN 55024: 2010+A1:2015 EN 61000-3-2: 2014, EN 61000-3-3: 2013 ETSI EN 301 489-1 V 2.1.1 (2017-02) Draft ETSI EN 301 489-52 V1.1.0 (2016-11) ETSI EN 301 908-1 V11.1.1(2016-07) ETSI EN 301 908-2 V11.1.1(2016-07) ETSI EN 301 908-1 V11.1.1 (2016-07) ETSI EN 301 908-13 V11.1.1 (2016-07), EN62479: 2010 EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
