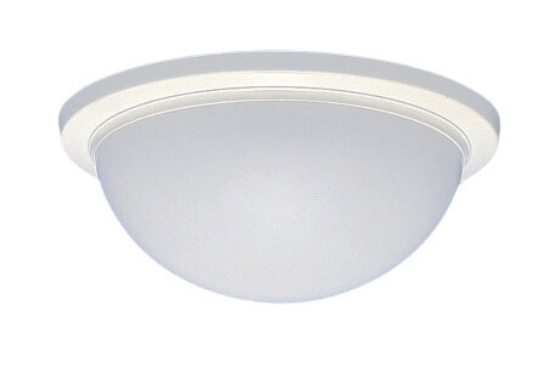

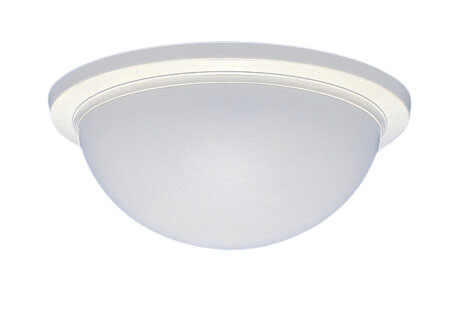

| Model | PA-5325E |
| Product type | Passive infrared sensor |
| Detection system | Passive infrared (QUAD) |
| Coverage | Wide angle: 12m (40ft) max. |
| Sensitive zone | 24 (6 pairs) |
| Supply voltage | 9.5 to 30VDC (non-polarity) |
| Current consumption | NC contact: 25mA max. / NO contact: 35mA max. |
| Alarm output | Dry contact relay (NO/NC changeover)
Reset: approx. 2 sec, 30V (AC/DC) 0.25A
(Protective resistor 3.3Ω) |
| Tamper output | Dry contact relay (N/C)
Open when cover or body is detached
30V 0.1A max. |
| Alarm memory | Auto-reset memory: 3 mins. flashing, 47 mins lighting
Manual memory: memory disabled/indication/reset control using terminal 8 |
| Slight motion detection | Sensitive zone: 12 pairs |
| Alarm LED (RED) | Blinking (every 0.5sec): Warm-up
Lighting (approx. 2 sec): Alarm
Blinking (every 0.25sec): Trouble indication
Continuous lighting: Trouble alarm
(Disabled is LED except trouble indication) |
| Memory LED (YELLOW) | Blinking: Memory activated
Lighting: Memory indicated |
| Trouble indication | Alarm contact checking whenever an alarm outputs
Operation: Trouble indication |
| Trouble signal | Unit trouble: Monitoring inner circuit and wiring damage
Operation: Trouble alarm
Low voltage trouble: Monitoring low voltage
Operation: Trouble alarm
Positioning trouble: monitoring failure to replace viewfinder
Operation: Trouble alarm |
| Ambient temperature | -10°C to +55°C (+14°F to +131°F) |
| Mounting position | Indoor ceiling/wall |
| Wiring connections | Terminals |
| Weight | 250g (8.75oz) |
| Appearance | Body: ABS resin
Cover: PE resin |
| Adjustment range | Ceiling mount: Vertical 24 degrees / Horizontal ±15 degrees
Wall mount: Vertical 20 degrees / Horizontal ±5 degrees |
