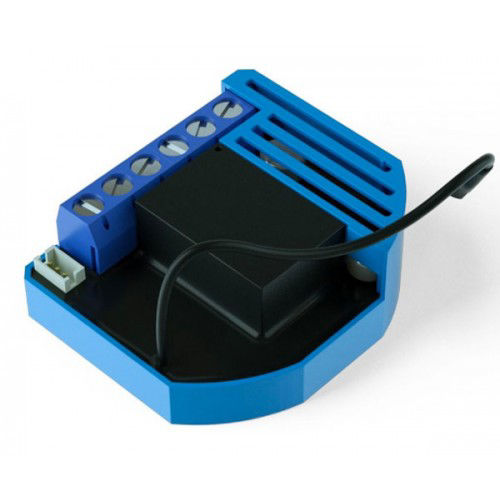

The GOAP Flush Relay is a single channel wireless Z-Wave relay with voltage-free (dry) contacts capable of controlling lights and appliances up to 10A.
It connects wirelessly with your Z-Wave controller and fits easily into an existing light switch, enabling you to wirelessly control appliances.
It can be powered from 230/240VAC or 24VDC making it versatile to also be used to control any device from low voltage sprinkler systems, Door Strikes or anything that is not 240V activated.
The smart switching module also works as a repeater to improve range and stability of your Z-wave network. The module can be controlled either through the Z-wave network or through the wall switch manually.
This module is designed to be mounted behind a traditional wall switch or can be mounted in a small junction box close to the device you wish to control. When connected to 240VAC the Module measures power consumption of the load.
Supported switches
The module supports mono-stable switches (push button) and bi-stable switches. The module is factory set to operate with bi-stable switches.
- Compatible with any Z-Wave Controller.
- Dimensions (W x H x D) 41,8 x 36,8 x 15,4mm
- Power monitoring accuracy P=5-50W, +/-3W; P˃50W, +/-3%;
- Digital temperature sensor range (sensor must be ordered separately) -50 ~ 125°C
- 2 binary inputs offer the option to connect additional devices such as sensors, switches/push buttons.
