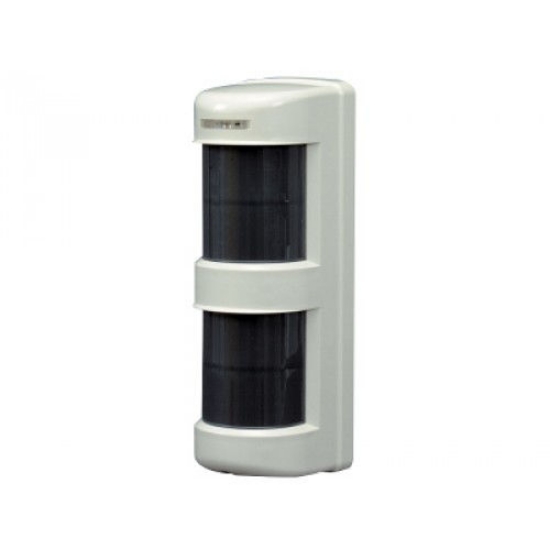

| Detection system |
Passive Infrared |
| Coverage |
When horizontal detection
Angle : 90°
Detection distance : 40ft (12m)
Horizontal zone : 7 zones
Downward zone : 7 zones |
| Coverage adjustment |
Horizontal : +/-90°
Detection distance : 10' to 40' (3 to 12m)
(By adjusting vertical angle of downward zone) |
| Supply voltage |
12 to 30V DC (non-polarity) |
| Current consumption |
35mA MAX. |
| Alarm output |
Dry contact relay output N.C./N.O. selectable
Contact capacity : 30V (AC・DC), 0.5A MAX. (Resistive load)
Contact operation : Detection time + off delay
(2sec. -5min. approx.) |
| Detection settings |
Daylight : Night (10 lux) - Day and Night |
| Tamper output |
Dry contact relay output N/C
Contact capacity : 30V (AC/DC), 0.5A MAX. (Resistive load) |
| Operation LED |
Red LED
Blinking at warming up (LED disabled)
Lighting at alarm (LED disabled) |
| Pulse count settings |
once / three times (with a switch) |
| Sensitivity adjustment |
Approx. 30% (L) - Approx. 170% (H) (By potentiometer) |
| Detection mode |
AND / OR selectable |
| Connection |
Terminals |
| Ambient temperature |
-4F to +122F (-20C to +50C） |
| Mounting position |
Indoor / Outdoor |
| Weight |
13.7oz (390g) |
| Appearance |
Body : AES resin
Lens : PE resin |
| Accessories |
Tapping screw : 2
Area masking sheet : 1 |
