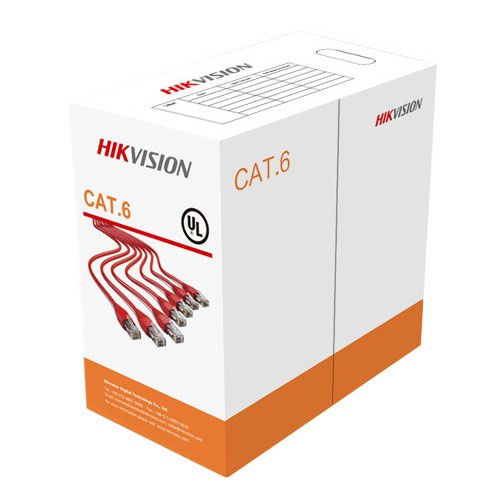

HIK DS-1LN6-UU CAT6 Cable Orange 305m box

General

• Core Color

  1 White- Blue /Blue 2 White-Orange /Orange

  3 White-Green /Green 4 White- Brown /Brown





• PackingWooden Tray & Carton
• Carton DimensionPer request
• Packing Length305±1.5m
• Rip-CordYes
• Drain WireNo
• Sheath Physical Properties

  Before Aging Tensile Strength (Mpa) ≥13.5

  Elongation(%) ≥150

  Aging Period (℃×hrs) 100℃×24h×10d

  After Aging Tensile Strength(Mpa) ≥12.5

  Elongation(%) ≥125

  Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks





• Electrical Characteristics (20℃)

  1.0-250.0MHz Impedance ((Ω) 100±15

  1.0-250.0MHz Delay Skew (ns/100m) ≤45

  DC Resistance (Ω/100m) max 9.38

  DC Conductor Resistance Unbalance (%) max 5.0





Conductor

• Material

  Solid-Bare Copper

  Content 99.95%



• Nom.O.D.(Mm)0.565±0.005

Insulation

• MaterialHDPE
• Diameter1.02±0.05mm

Sheath

• Thickness0.55±0.05 mm
• External O.D.6.2±0.4 mm
• SurfaceClean,Frap,Satiation
• MaterialPVC(complies RoHS),CM
• ColorOrange RAL2003

Surface Printing

• Letter Height3.0±0.3mm
• ColorBlack
• Print Error & Space≤±0.5%，1m
