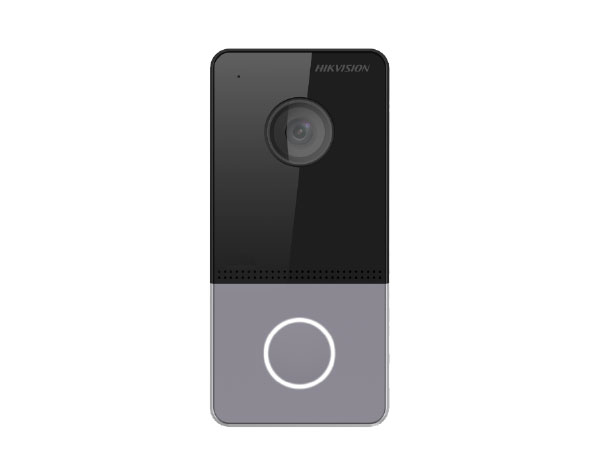

Hikvision DS-KV6113-WPE1(C)(O-STD) Door Station

System Parameters

• Operation SystemLinux
• ROM32 MB
• RAM256 MB
• ProcessorEmbeded high performance processor

Display Parameters

• Screen Size/
• Operation Method/
• Type/
• Resolution/

Video Parameters

• Lens1
• Resolution

  Main stream: 1920 × 1080p, 720p

  Sub stream: 640 × 480p

• FOVHorizontal: 131° Vertical: 78°
• Wide Dynamic Range (WDR)Support 120 dB
• Supplement LightIR light, up to 3 m
• Video Compression StandardH.264

Audio Parameters

• Audio Input1 built-in omnidirectional microphone
• Audio Compression StandardG.711 U
• Audio Output1 built-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

Capacity

• User Capacity2000
• Face Capacity/
• Card Capacity10000

Network Parameters

• Network ProtocolTCP/IP, RTSP
• Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
• BluetoothNot supported.
• 3G/4G/

Device Interfaces

• Alarm Input4
• Network Interface1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER1
• Exit Button1
• RS-4851
• USB/
• Wiegand/
• TF CardReserved
• Alarm Output/
• Lock Control1 relay, Max. 30 VDC 2 A
• Door Contact Input1

General

• Button1 physical button
• InstallationSurface mounting
• Indicator2
• Weight

  Net weight: 0.190 kg

  Gross weight: 0.414 kg

• Protective LevelIP65
• Working Temperature-40 °C to 55 °C(-40 °F to 131 °F)
• Working Humidity10% to 95% (no-condensing)
• Dimension (W × H × D)138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1")
• Battery/
• Application EnvironmentOutdoor
• Power Consumption＜ 10 W
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
