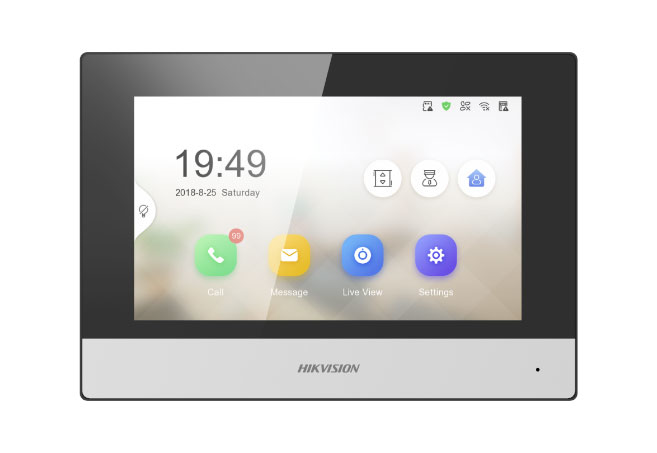

HIKVISION DS-KH6320-WTE2 2 Wire Room Station Black

HIKVISION DS-KH6320-WTE2 (BLK)
SKU: 104-885

Two wire indoor stations

  • 2-wire IP indoor station
  • 7“ capacitive touch-screen, Wi-Fi
  • TF card support, max t o 32G
  • 8-ch alarm input, 2 × alarm output, 1 × RS485
  • Remote unlocking via the client or APP
  • Views live videos of door stations and linked cameras


Display Parameters

  • Size7-inch
  • Operation MethodCapacitive touch
  • TypeTFT LCD

Video Parameters

  • LensNot supported.
  • FOVNot supported.
  • PixelNot supported.

Audio Parameters

  • Audio QualityNoise suppression and echo cancellation

Network Parameters

  • Communication ProtocolTCP/IP, SIP, RTSP
  • Wired Network10/100 Mbps self-adaptive
  • Wi-FiWi-Fi 802.11 b/g/n
  • BluetoothNot supported.
  • ZigbeeNot supported.

Device Interfaces

  • Network Interface1 RJ-45 10/100 Mbps self-adaptive
  • Power Interface1

General

  • Button0
  • InstallationSurface mounting
  • Indicator0
  • 0.4KG
  • Protective LevelNot supported
  • Power Supply MethodTwo-wire
  • Working Temperature-10 °C to 50 °C (-14 °F to 122 °F)
  • Working Humidity0% to 90%
  • Dimensions

    200 mm × 140 mm × 15.1 mm (7.87" ×

    5.51 × 0.59\")



  • BatteryNot supported.
  • Application EnvironmentIndoor
  • Power Consumption≤ 6 W
