Sorry - this product is no longer available

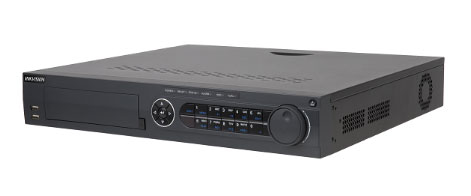

HIKVISION DS-7316HTHI-K4

HIKVISION DS-7316HTHI-K4 TVI DVR 8MP 16ch DVR inc 3TB HDD
SKU: 104-881

HIKVISION DS-7316HTHI-K4 TVI DVR 8MP 16ch DVR inc 3TB HDD

  • 16 channels and 4 HDDs 1.5U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 8 MP @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 32 network cameras can be connected
  • Supports POS triggered recording and POS information overlay
  • Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks
  • Up to 10 TB capacity per HDD
  • Support POS triggered recording and POS information overlay

Recording

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate

    Main stream: 8 MP@12 fps/5 MP@20 fps; 3 MP@18fps; 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

    Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)

  • Video Bitrate32 Kbps to 16 Mbps
  • Dual-StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps

Video And Audio

  • IP Video Input16-ch (up to 32-ch);Up to 8 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
  • AHD Input5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
  • HDCVI Input4 MP, 720p25, 720p30, 1080p25, 1080p30
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
  • HDMI 1 Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • HDMI 2 Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
  • Synchronous Playback16-ch

Network

  • Remote Connection128
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
  • Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

  • SATA4 SATA interface
  • ESATA1, eSATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
  • Alarm In/Out16/4
  • USB InterfaceFront panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0

General

  • Power Supply100 to 240 VAC, 50 to 60 Hz, 1.3 A
  • Consumption≤ 45 W
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
  • ≤ 6 kg (13.2 lb)

Brochure
