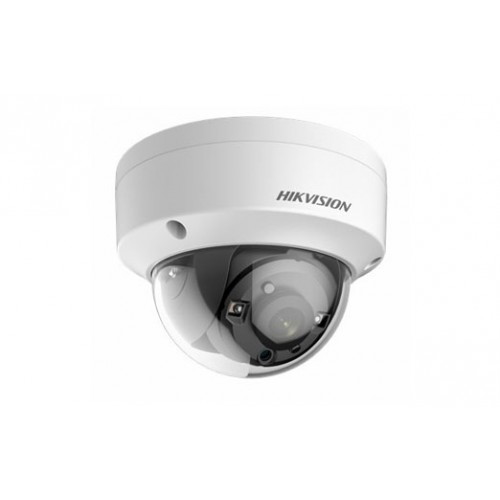

| Camera |
| Image Sensor: | 5 megapixel progressive scan CMOS |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
| Day& Night: | IR cut filter |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps; AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps; CVI: 4 MP@25fps, 4 MP@30fps; CVBS: PAL, NTSC |
| Synchronization: | Internal Synchronization |
| Menu |
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 |
| D/N Mode: | Auto/Color/BW (Black and White) |
| White Balance: | Auto / Manual |
| BLC: | Support |
| AGC: | Support |
| WDR: | Yes |
| Language: | English |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface |
| Video Out: | 1 HD analog output |
| General |
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Impact Protection: | IK10. |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Communication : | Up the coax
Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | Ø 111 mm × 82.4 mm (Ø 4.4"" × 3.2"" ) |
| Weight: | Approx.500 g (1.10 lb.) |
| Video/Audio Input |
| Audio Input: | 4-ch |
| Video Compression: | H.264 |
| Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types: | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
| IP Video Input: | 2-ch 1080P |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | G.711u |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input) |
| Video/Audio Output |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | Mainstream: 1080P / 720P / VGA / WD1 / 4CIF / CIF;Sub-stream: WD1(non-real-time)
/ 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Frame Rate: | Mainstream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate |
| Video Bit Rate: | 32 Kbps-10 Mbps |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback: | 4-ch |
| Network management |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI,
UPnP™, HTTPS |
| Hard Disk Driver |
| Interface Type: | 1 SATA Interface |
| Capacity: | Up to 6 TB capacity for each disk |
| External Interface |
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB Interface: | 2 USB 2.0 Interfaces |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex |
| Alarm Input: | 4-ch |
| Alarm Output: | 1-ch |
| General |
| Power Supply: | 12V DC |
| Consumption: | ≤ 15W |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | 10% ~ 90% |
| Chassis: | 1U chassis |
| Dimensions: | 315 × 242 × 45mm (12.4 × 9.5 × 1.8 inch) |
| Weight: | ≤ 1.5Kg (3.3lb) |
