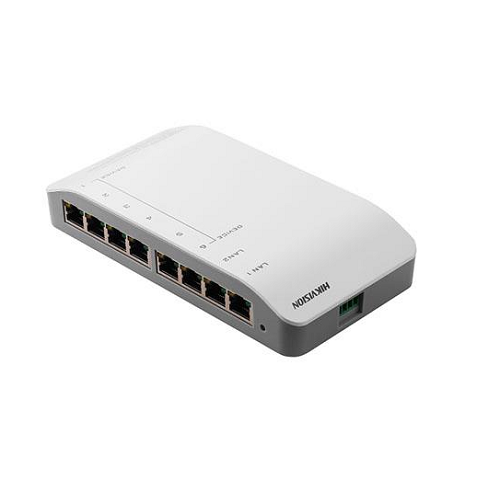

HIKVISION DS-KAD606-P

Video Intercom Video/Audio Power Distributor

SKU: 104-833B

Overview
Features
Specifications
Specifications
Downloads

Hikvision Gen1 DS-KAD606-P is an integrated Video/Audio power distributor supporting network cable power supply. It has a built-in voltage-stabilized power and eight 10/100M LAN interfaces, six of which support powering through network cables. It is suitable for internet connection of all-digital video intercom in residential communities.

It includes 8 x 100Mbps ports (6-ch supporting network cable powering and 2-ch cascading LAN interfaces), suitable for indoor station and villa door station.

Built-in 24V DC voltage-stabilized switching mode power supply,
Eight RJ45 interfaces, including six adaptive 10/100M LAN interfaces supporting network cable powering and two adaptive 10/100M cascading LAN interfaces,
IEEE802.3, IEEE802.3u, IEEE802.3x,
Storing and forwarding function,
VLAN technique,
Over 1000,000h mean time between failure
Wall Mounting Optional.

Products specifications

SERIES	GEN 1

Network Parameters
Interface number:	Eight 10/100 Mbps Interfaces
Interface type:	RJ-45, Full/Half-Duplex, MDI/MDI-X Self-Adaptive
Standard:	IEEE802.3, IEEE802.3u, IEEE802.3x
Processing type:	Storing and Forwarding
Flow control:	IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex)
Priority queue:	Four
Max. VLAN:	64
VLAN ID No.:	VID1 to VID4094
MAC address list:	8K
Internal buffer:	1 Mbit
General
Power Supply:	24 VDC (24V DC Power Adapter included)
Power Consumption:	≤8 W
Working Temperature:	-10° C to + 55° C (14° F to 131° F)
Working Humidity:	10% to 90%, No Condensation
Dimensions(L × W × H):	176 mm × 91 mm × 32 mm (69.3" × 35.8" × 12.6")

It includes 8 x 100Mbps ports (6-ch supporting network cable powering and 2-ch cascading LAN interfaces), suitable for indoor station and villa door station.
