Manufacturer: Hikvision

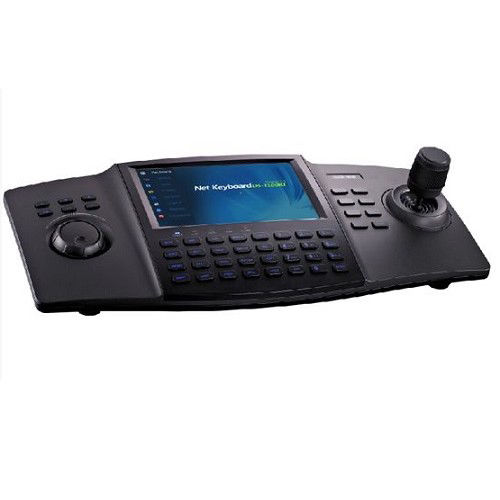

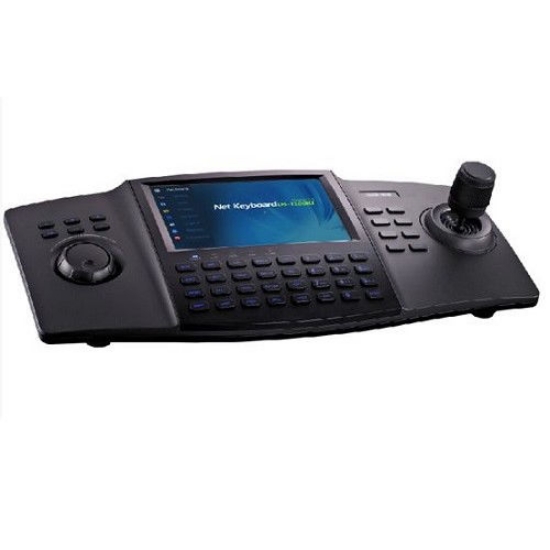

HIKVISION DS-1100KI CONTROLLER

Security Keyboard with Joystick

SKU: 104-759

Overview
Features
Specifications
Downloads

Hikvision’s DS-1100KI Network Keyboard / PTZ controller is compatible with Hikvision NVRs, DVRs, video encoders and IP cameras.

It is capable of the switching and controlling of the video outputted from the video matrix system and the multi-channel video decoder, as well as PTZ control of the connected camera over a network.

7’’ TFT touch screen at 800×480 resolution
Speed dome, video decoder & DVR control
1-ch HD video stream decoding at 1080p
Support 15 users, and each can operate up to 256 devices
USB 2.0 interface for video backup

Control mode
Control mode:	IP-based
Audio Input/Output
Line In:	1-ch, 3.5mm connector (2.0Vp-p, 1kΩ）
Audio Out:	1-ch, 3.5mm connector (Linear, 600Ω)
External interface
Communication interface:	1 RJ45 10M/100M/1000M adaptive Ethernet interface; 1 RS-232 interface; 1 RS-485 interface; 1 USB2.0 interface (for data storage and device upgrade)
General
LCD screen:	7” TFT LCD monitor with touch panel
Joystick:	3-axis joystick
Power supply:	12VDC
Power consumption:	≤15W
Working temperature:	-10°C ~ +55°C
Working humidity:	10%~90%
Size:	110mm (H)×193mm (W) ×435mm (D)
Weight:	2Kg
