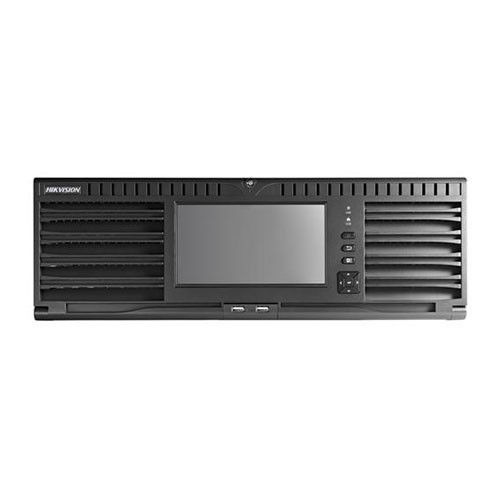

Hikvision DS-96256NI-I24 256ch NVR

• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Video outputs at up to 4K (4096*2160) resolution
• Up to 256 IP cameras can be connected with 768M incoming bandwidth
• Up to 24 SATA interfaces
• Support redundant power supply to improve the system stability
• Support HDD hot swap with RAID0,1,5,10 storage scheme configurable
• Support various VCA detection alarm and VCA search

Video And Audio

• IP Video Input256-ch
• Incoming Bandwidth768 Mbps
• Outgoing Bandwidth768 Mbps
• Incoming Bandwidth (RAID Mode)768 Mbps
• Outgoing Bandwidth (RAID Mode)768 Mbps
• TLS Outgoing Bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
• HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
• VGA Output1-ch. Resolution: 1080p (1920 × 1080) /60Hz, UXGA (1600 × 1200) /60Hz, SXGA (1280 × 1024) /60Hz, 720p (1280 × 720) /60Hz, XGA (1024 × 768) /60Hz
• LCD OutputOptional: One 7 inch LCD
• Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
• Recording Resolution12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous PlaybackUp to 16 channels
• Decoding Capability3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps)

Network

• Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
• Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
• Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

RAID

• RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10

Auxiliary Interface

• SATA24 SATA interfaces supporting hot-plug
• CapacityUp to 10 TB for each HDD
• Serial InterfaceRS-232; RS-485; Keyboard
• USB InterfaceFront Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
• Alarm In/Out16/8
• ESATA1 × eSATA interface
• Mini SASOptional: 2 × mini SAS interface
• Extension BoardOptional: One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.

General

• Power Supply100 to 240 VAC, 50 to 60Hz
• Consumption≤ 140 W (without HDD)
• Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)447 × 528 × 172mm (17.6 × 20.8 × 6.8 inch)
• Weight≤ 23 kg (50.7 lb)
