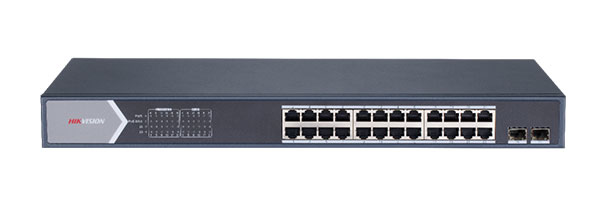

HIKVISION DS-3E0526P-E/M 24 Port Gigabit PoE Switch

Network Parameters

• Port Number24 × Gigabit PoE ports, 2 × Gigabit fiber optical ports
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
• Forwarding ModeStore-and-forward switching
• MAC Address Table8 K
• Internal Cache4.1 Mbits
• Switching Capacity52 Gbps
• Packet Forwarding Rate38.688 Mpps

PoE Power Supply

• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power PinEnd-span: 1/2(-), 3/6(+)
• PoE PortPorts 1 to 24
• Max. Port Power30 W
• PoE Power Budget225 W

General

• Dimension (W × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Storage Humidity5% to 95% (no condensation)
• Gross Weight4.120 kg (9.08 lb)
• Net Weight2.920 kg (6.44 lb)
• Power Consumption In Idle25 W
• ShellMetal material, fan-free design
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Operating Humidity5% to 95% (no condensation)
• Power Supply100 to 240 VAC, 50/60 Hz, 4 A (Max)
• Max. Power Consumption250 W

Approval

• EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 8)
• SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2018)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2007)
