Manufacturer: Hikvision

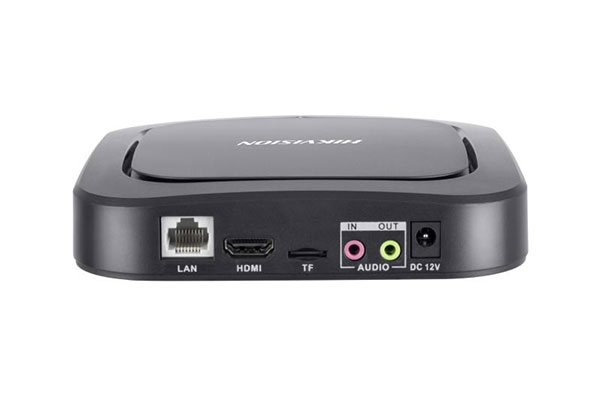

Hikvision DS-D60C-B Digital Signage Box

HIKVISION DS-D60C-B DIGITAL SIGNAGE BOX
SKU: 104-204B

Hikvision DS-D60C-B Digital Signage Box

  • Variable Materials Supports static and dynamic materials, including the application, pictures, audio, video, PDF, streaming media, webpage, live video, third-party data, etc.
  • Flexible Program Schedule Supports free schedule and district display of multiple materials. Supports variable display modes: display by day, display by week, custom display, etc.
  • Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, timed brightness/volume, and screenshot previewing.
  • Organization Feature 5-level organization is available for managing materials, programs, terminals, and users.
  • Multilevel User Permission Supports creating custom users, and allocating permission for users according to user level.
  • Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver to secure safe for broadcast contents. Encryption of data storage and transmission to avoid data tampering.
  • Arbitrary Direction Remote Control The remote control, adopting wireless communication in 433 MHz, can control the information distribution box in arbitrary direction.

Requires Hikcentrral license 114-377B HIkCentral-P-DS-5Unit/Base
(Ask your Ness branch)

Cabinet

  • Resolution1920 × 1080@30 Hz,1920 × 1080@50 Hz,1920 × 1080@60 Hz,1280 × 720@30 Hz,1280 × 720@50 Hz,1280 × 720@60 Hz,3840 × 2160@30 Hz,3840 × 2160@50 Hz,3840 × 2160@60 Hz

Built-In System

  • Operation SystemAndroid 8.1.0
  • CPUCortex-A17, 4-core, main frequency 1.6 GHZ
  • Memory2 GB
  • Storage16 GB (EMMC)

Interface

  • Video & Audio InputAUDIO IN × 1
  • Video & Audio OutputAUDIO OUT × 1,HDMI OUT × 1
  • Network InterfaceLAN × 1,Wi-Fi
  • Data Transmission InterfaceUSB 2.0 × 2 , Bluetooth 4.0

Power

  • Power Supply12 VAC, 2 A
  • Standby Consumption≤ 1 W

Working Environment

  • Working Temperature0 °C to 40 °C (32 °F to 104 °F)

General

  • Product Dimensions (W × H × D)145 mm × 145 mm × 31.89 mm (5.7" × 5.7" × 1.3")
  • Working Humidity10 % to 90 %
  • Package Dimensions (W × H × D)188 mm × 176 mm × 101 mm (7.4" × 6.9" × 4.0")
  • Net Weight0.6 kg (1.3 lb.)
  • Gross Weight0.65 kg (1.4 lb.)
  • Packing ListPower Adaptor × 1, Remote Control× 1

Default Parameters

  • Material

    DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, WMV, ASF,

    MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF,

    MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG

Brochure

Hikvision DS-D60C-B Digital Signage Box

  • Variable Materials Supports static and dynamic materials, including the application, pictures, audio, video, PDF, streaming media, webpage, live video, third-party data, etc.
  • Flexible Program Schedule Supports free schedule and district display of multiple materials. Supports variable display modes: display by day, display by week, custom display, etc.
  • Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, timed brightness/volume, and screenshot previewing.
  • Organization Feature 5-level organization is available for managing materials, programs, terminals, and users.
  • Multilevel User Permission Supports creating custom users, and allocating permission for users according to user level.
  • Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver to secure safe for broadcast contents. Encryption of data storage and transmission to avoid data tampering.
  • Arbitrary Direction Remote Control The remote control, adopting wireless communication in 433 MHz, can control the information distribution box in arbitrary direction.

Requires Hikcentrral license 114-377B HIkCentral-P-DS-5Unit/Base
(Ask your Ness branch)
