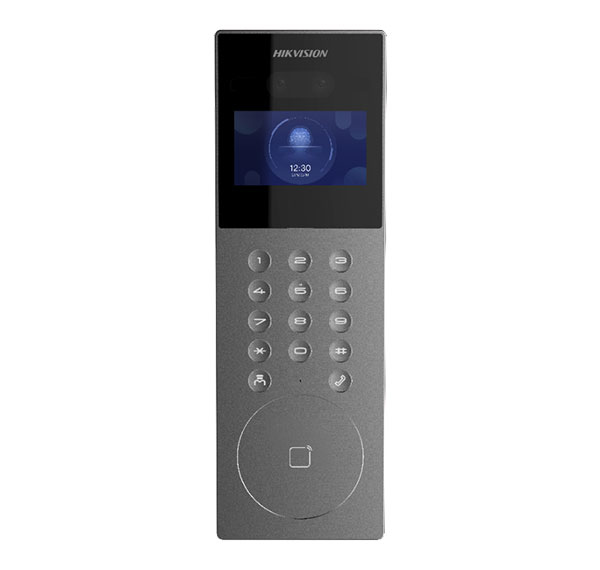

Hikvision DS-KD9203-E6 Face Recognition Door Stn

Display Parameters

• Size4.3-inch
• Operation MethodPhysical button
• TypeColorful LCD

Video Parameters

• Supplement Light

  Low illumination, IR supplement lights



• Lens1
• FOV/
• Pixel

  Main stream: 1080p@30fps,720p@30fps

  Sub stream: VGA@25fps, VGA@30fps

Audio Parameters

• Audio QualityNoise suppression and echo cancellation

Network Parameters

• Communication ProtocolTCP/IP, RTSP
• Wired NetworkSupport
• Wi-Fi/
• Bluetooth/

Device Interfaces

• Network Interface1 10/100/1000 Mbps self-adaptive Ethernet
• Exit Button1
• Lock Control1
• Door Contact Input1
• Power Interface1

General

• Button/
• InstallationFlush mounting
• Indicator/

• 0.995 kg (without package)

  1.592 kg (with package)

• Protective LevelIP65
• Power Supply Method12 VDC, 1.5 A
• Working Temperature-30 ° C to +60 ° C (-22 ° F to +140 °F)
• Working Humidity

  10% to 90%



• Dimensions373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72")
• Battery/
• Power Supply12 VDC, 1.5 A
• Application EnvironmentOutdoor
• Power Consumption≤ 13 W
