Sorry - this product is no longer available

HIK DS-7604NI-I1/4P NVR 4Ch inc 3TB HDD

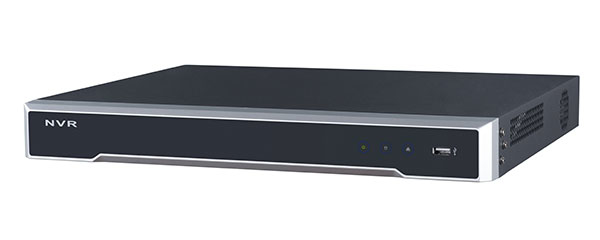

HIKVISION DS-7604NI-I1/4P Embedded Plug & Play 4K NVR
SKU: 104-061B

Hikvision DS-7604NI-I1/4P 4ch 4 PoE 4K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 4ch IP camera inputs
  • 2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)
  • 4ch synchronous playback at up to 8MP resolution
  • 4 x PoE ports
  • Includes 1 x 3TB HDD



Video And Audio

  • IP Video Input4-ch Up to 12 MP resolution
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Incoming Bandwidth40 Mbps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Decoding Capability2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)
  • Synchronous Playback4-ch
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF

Network

  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

  • Interface4 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

Auxiliary Interface

  • SATA1 SATA interface
  • CapacityUp to 8 TB capacity for each HDD
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out4/1

General

  • Power Supply48 VDC, 1.8 A
  • Consumption≤ 15 W
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
  • ≤ 1.18 Kg (2.6 lb)

Brochure

Hikvision DS-7604NI-I1/4P 4ch 4 PoE 4K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 4ch IP camera inputs
  • 2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)
  • 4ch synchronous playback at up to 8MP resolution
  • 4 x PoE ports
  • Includes 1 x 3TB HDD
