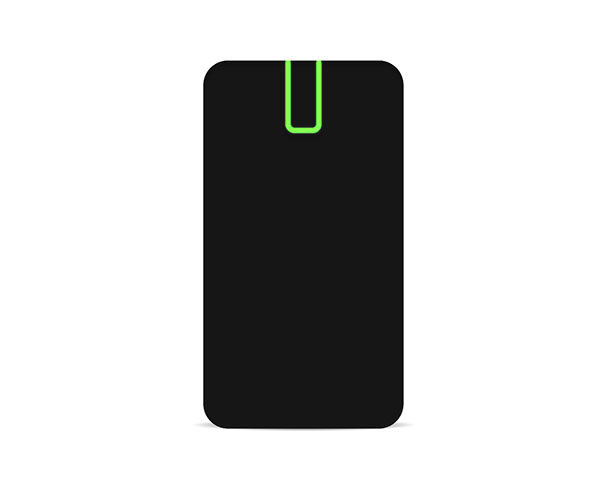

U-PROX SE MINI versatile reader.
• NFC and 2.4 GHz radio
• adjustable 2.4 GHz distance (0.1 - 15 m)
• Mifare Plus SL1/SL3 and Mifare Classic
• Supports multiple formats of 125 kHz RFID
• Smartphone adjustable
• OSDP or Wiegand interface
• simple and convenient installation
• Supports mobile credentials
• IP65 degree of protection
MIFARE
Operates with ISO14443A identifiers, supports SL1 and SL3 modes for Mifare®Plus. Read range — up to 5 cm. Reads encrypted identifiers with static or diversified key and with an arbitrary card number. Simultaneous use of five encryption profiles.
RFID 125KHz
Supports RFID 125 kHz - EmMarine and other formats
EASY CONNECTION
Seamless and easy connection to existing and new access systems, due to the OSDP, Wiegand 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits interfaces, Wiegand with automatic selection, RS232 and TouchMemory supports
INTEGRATION
Supports a wide range of card formats including HID. OSDP or RS-232 protocols for integration into arbitrary systems. The encrypted OSDP protocol provides safe management of all parameters of the reader including credential encryption keys from the panel.
