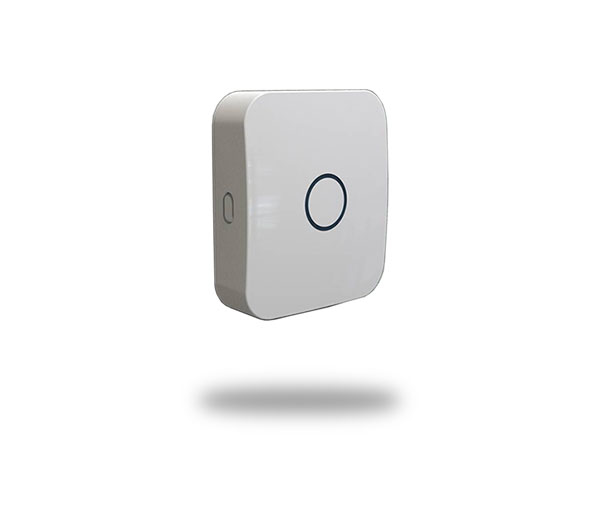

Ness Z-Wave Door Lock Controller (DLC) is a unique access control accessory providing a smart relay output and door position sensor inputs.
DLC provides one relay output and one 12V DC power output for connection to existing devices such as an electric door strike, electromechanical lock, magnetic lock, garage door and gate etc., any of which can be operated remotely via Z-Wave wireless control commands.
Ness DLC is powered by a rechargeable 18650 Li-Ion battery or external USB (C type connector) power.
Two pairs of external terminals are provided for wired door position sensors such as reed switches or Request To Exit (REX) button. The function of each external terminal is configurable via Z-Wave configuration command class.
Ness DLC is a Security Enabled Z-Wave Plus™ V2 empowered wireless control. This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers with same regional radio frequency. All mains operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
• Provides one relay output and one 12V DC power output.
• The 12V output can operate a Power-To-Open lock (200mA max.)
• Automatically relock as per configured time.
• Also allows manual operation via the on-board lock/unlock pushbutton.
• Supports external sensors such as reed switches to detect door positions
• Supports wired pushbutton/s for Request To Exit.
• The RGB LEDs indicate the operation status.
• Supports Security Enabled encrypted communications S0 and S2 Access.
• Supports SmartStart inclusion
• Supports the Over the Air firmware upgrade (OTA).
• Powered by one rechargeable Li-ion 18650 battery.
• Supports external 5V 2A power supply/charger via USB-C.
• Low battery warning indication and report
