| Navigator Touch Screen |
| DIMENSIONS (W - H - D) |
108 x 86 x 15 mm |
| DISPLAY TYPE |
3.5" Colour lCD |
| DISPLAY RESOLUTION |
320 x 240 |
| TOUCH SCREEN |
Touch sensitive surface |
| COMPATIBILITY |
D8XD / D16XD |
| OPERATION VOLTAGE |
12VDC supplied by the control panel |
| DATA |
2 wire proprietary Ness data bus |

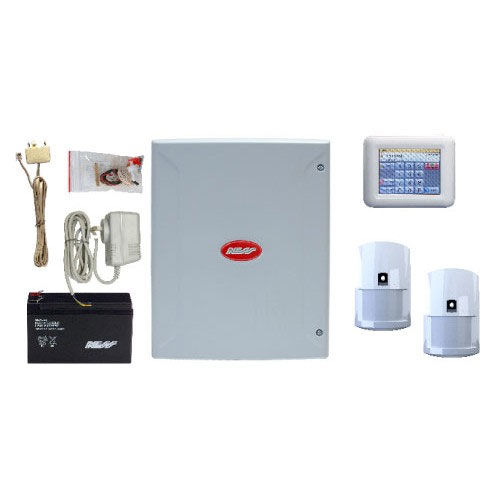

| Navigator Control Panel D8XD |
| BOX DIMENSIONS (W - H - D) |
235 x 300 x 90 mm |
| POWER INPUT |
17VAC or 20VDC |
| AUX POWER OUTPUT |
13.8v DC @ 800mA |
| QUIESCENT CURRENT DRAW |
80mA with 1 keypad |
| RECHARGEABLE BATTERY |
12 volt 7.0 Amp/hour Sealed lead Acid |
| BATTERY CHARGING CURRENT |
350mA maximum, current limited |
| DYNAMIC BATTERY TEST |
Backup battery is tested under load, hourly and on arming |
| FUSES |
2 Amp auto resetting / Siren output & Reset output.
500mA auto resetting / 12 volt auxiliary outputs.
200 mA auto resetting / Strobe output |
| ZONE OUTPUTS |
8 zone inputs. 2 x 24hr tamper inputs |
| END OF LINE RESISTOR |
Choice of 12 programmable values including N/C.
Default 2200 Ohms (2.2k) |
| MAXIMUM KEYPADS |
3 x Navigator Touch Keypads max. |
| INTEGRATED RADIO OPTIONS |
Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 8 radio zones |
| SERIAL HEADER |
Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data |
| INTEGRATED ACCESS CONTROL |
Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers |
| SIREN OUTPUT |
On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers |
| STROBE OUTPUT |
12v DC timed output. Maximum 2 x 1 Watt strobe lights |
| RESET OUTPUT |
12v DC timed output. Max. 3 x 12v piezo screamers |
| EQUIPMENT POWER OUTPUT |
13.8v DC output for powering detectors and other equipment. Maximum 500mA |
| AUX READER |
Multi-pin connector provides outputs Aux1, Aux2, Aux3, Aux4, 12v DC |
