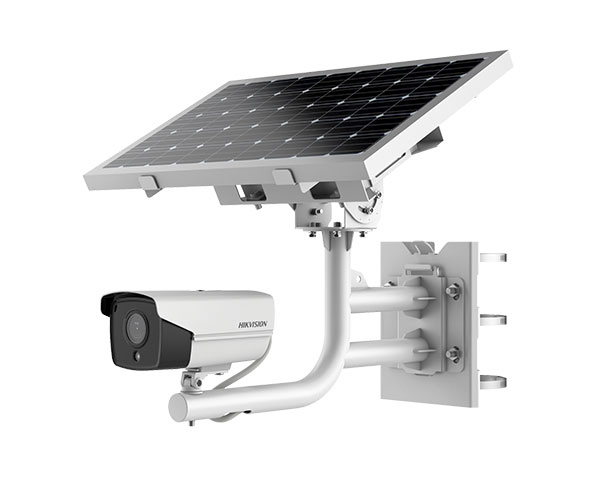

Hik DS-2XS6A25G0-I 2MP Solar Cam 8mm & 30AH Batt

Camera

• Image Sensor1/2.8" Progressive Scan CMOS
• Min. Illumination

  Color: 0.004 Lux @ (F1.4, AGC ON)，

  B/W: 0.002 Lux @ (F1.4, AGC ON), 0 Lux with IR on

• Shutter Speed1 s to 1/100,000 s
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range120 dB
• Day & NightIR cut filter

Lens

• Lens TypeFixed Focus Lens
• Lens Type & FOV

  (K-114-224-30) 2.8mm @1.4: Horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 128°

  (K-114-242-30) 4mm @F1.4: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

  (K-114-233-30) 8mm @F1.6: Horizontal FOV: 41°, vertical FOV: 22°, diagonal FOV: 47°

• Lens MountM12

DORI

• DORI

  2.8 mm: D 44 m / O 17.5 m / R 9 m / I 4.5 m

  4 mm: D 53 m / O 21 m / R 11 m / I 5 m

  8 mm: D 110 m / O 44 m / R 22 m / I 11 m

Illuminator

• IR RangeUp to 30m
• Wavelength850nm
• Smart Supplement LightYes

Video

• Max. Resolution1920 × 1080
• Main Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50Hz: 25fps (704 × 576, 640 × 480)

  60Hz: 30fps (704 × 480, 640 × 480)

• Third Stream

  50Hz: 1fps (1280 × 720, 640 × 480)

  60Hz: 1fps (1280 × 720, 640 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main Stream supports
• H.265+Main Stream supports
• Bit Rate ControlCBR/VBR
• Stream TypeMain stream/Sub-stream/third stream
• Scalable Video Coding (SVC)H.265 and H.264 support
• Region Of Interest (ROI)4 fixed regions for each stream

Network

• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, TLS 1.2
• Network StoragemicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE8+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

  Local service: Chrome 41.0+, Firefox 30.0+

Mobile Communication

• 4G Frequency

  LTE-TDD: Band38/40/41；

  LTE-FDD: Band1/3/5/7/8/20/28；

  WCDMA: Band1/5/8

  GSM: Band3/5/8

• 4G StandardLTE-TDD/LTE-FDD/WCDMA/GSM


• Smart IRThe IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
• Day/Night SwitchDay, Night, Auto, Schedule
• Target CroppingYes
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image EnhancementBLC, HLC, 3D DNR, Defog
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR≥52dB
• Privacy Mask4 regions of privacy mask

Interface

• RS-4851 RS-485(half duplex)
• On-Board StorageBuilt-in micro SD slot, up to 256GB
• Hardware ResetYes
• Communication InterfaceRJ45 10M/100M self-adaptive Ethernet port
• 4Gmicro SIM card

Event

• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line Crossing Detection, up to 4 regions configurable

  Intrusion detection, up to 4 regions configurable

  Region entrance detection, up to 4 regions configurable

  Region exiting detection, up to 4 regions configurable

  Unattended baggage detection, up to 4 regions configurable

  Object removal detection, up to 4 regions configurable,

  Scene change detection

  The smart events are only supported in full power mode.

General

• Linkage Method

  Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

  Trigger recording: memory card, network storage, pre-record and post-record

  Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email

  Trigger notification: HTTP, ISAPI, Email

• Online UpgradeYes
• Dual BackupYes
• Firmware VersionV5.5.111
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti- flicker, 3 streams heartbeat, mirror, privacy masks,flash log, password reset via e-mail, pixel counter
• Software ResetYes
• Storage Conditions-30 °C to 60 °C. Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-15 °C to 55 °C. Humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 20% ;
• Power Consumption And Current

  1. The average power consumption of the 24 hours is 1.76 W (4G transmission is excluded, 50% illumination).

  2. On rainy or cloudy day, the camera battery life is up to 5.2 days if it has been full charged (if the camera works continuously according to the 24-hour average power consumption).

  3. The daily effective sunlight is 1.77 hour and the camera can be online always (if it works continuously according to the 24-hour average power consumption).

• Power InterfaceΦ5.5 mm coaxial power plug
• Screw MaterialSUS304
• Camera Dimension760 × 732.6 × 586.9 mm (29.9" × 28.8" × 23.1") (Max. size of the camera after it is completely assembled)
• Package Dimension826 × 469 × 444 mm (32.5" × 18.5" × 17.5")
• Camera WeightApprox. 12964g (28.58 lb.)
• With Package WeightApprox. 16861g (37.17 lb.)

Battery

• Battery TypeLithium
• Capacity20 Ah
• Max. Charging Voltage12.6 V
• Operating Temperature-5 °C to 60 °C (23 °F to 140 °F)
• Battery Voltage10.8V
• Battery LifeMore than 800 cycles

Approval

• ClassClass B
• EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);
• RFCE-RED (EN 301489-1 V2.2.3; EN 301489-52 V1.1.0; EN 62311:2008); ICASA (EN 301 489-1 V2.2.3; EN 301 489-52 V1.1.0;EN 62311:2008)
• SafetyCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013;IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013;EN 62368-1:2014+A11:2017);
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionCamera: IP67(IEC 60529-2013)
