Manufacturer: Ness Corporation

M1 GOLD 14" KIT inc NAVIGATOR KEYPAD

M1 GOLD 14" KIT INC NAVIGATOR KEYPAD
SKU: K-1002-NAV

VALUE PACKAGE - M1 GOLD 14" KIT including NAVIGATOR KEYPAD

The Ness M1 Gold offers unequalled value to System integrators, installers, and end-users.

Unlike panels that may be strong in automation but weak in security (or vice versa), the M1 Gold boasts a rock-solid security foundation with the most imaginative and powerful automation functionality available.

Integrators and Installers will value the flash memory firmware, RS-232 serial port, ethernet connectivity option, fast PC programming, and ease of installation.

End users will welcome the quality and futuristic capabilities of the versatile keypad, voice telephone dialler and the built-in telephone remote. The 500+ word vocabulary pleasantly announces system status, configurable in any sequence to alleviate user intimidation.

M1 offers the flexibility to integrate industry-standard systems and components for easy upgrades and system expansion. In addition to the powerful digital dialler, the M1 has a built-in voice dialler, which can call any phone, on or off-site, including a mobile phone. Remote telephone control capability allows you to perform tasks; such as, change the temperature setting, control the water heater, lower the garage door, set lighting scenes, arm/disarm the system, control sprinklers, and more by simply picking up the phone – any phone.

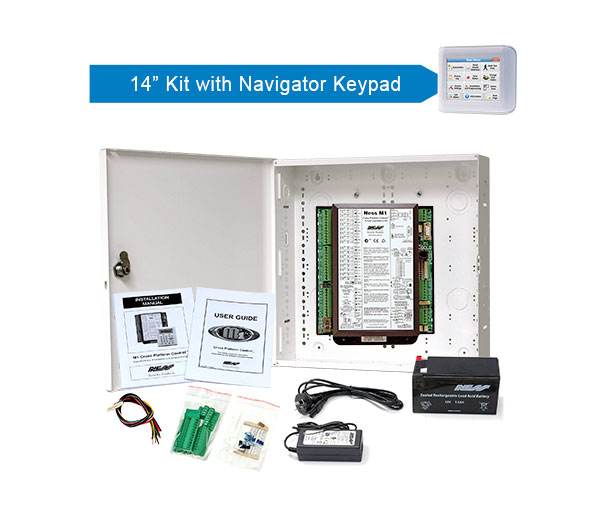

Supplied With
  • Ness M1 Gold Module
  • M1 Navigator Touch Screen Keypad
  • Power Assy kit (Inc 17VDC Power Supply, 12Volt 7 A/H Battery, dialler lead and Tamper switch & brackets.)
  • 14" tamper kit
  • 14" metal housing
  • Accessory kit
  • Manuals



     Made In Australia Made In Australia by NESS

  • Large zone capacity, expandable to 208 zones.
  • Two Way Listen-in interface.
  • Flash Memory - Allows field updates to firmware.
  • RS-232 serial port to interface to Computers and other devices (expandable to 8).
  • Time/Date stamped 512 event history log.
  • Menu-driven keypad programming - no manual required!
  • Voice announcement of alarms, zone descriptions, status, etc. *
    • 500+ Word/Phrase Vocabulary.*
    • Link up to 6 words/phrases per announcement.*
    • 10 custom recordable words/phrases.*
  • 13 On-Board Outputs: 1 voice driver/siren, 1 siren driver/voltage, 1 Relay, and 10 voltage outputs - expandable to 208 outputs.
  • Includes Fire alarm verification routine.
  • Can be partitioned into 8 separate areas and accounts.
  • 199 User Codes (4 or 6 digits) with assignable authorities.
  • Arm levels: Away, Stay, Stay Instant, Nite, Nite Instant, Vacation.
  • Plug-in terminals make service and pre-wire simple.*
  • Hardware “watchdog” and nonvolatile EEPROM memory.
  • Supervised phone line.
  • Supervised alarm output.
  • Supervised power supply overcurrent.

* Some features are not available on all models.



COMMUNICATIONS

  • True V.22 bis Modem for fast reliable upload/download.
  • Optional Ethernet port for user operation, programming.
  • Built-in Telephone Remote makes any phone a keypad.*
  • Integrated Voice Dialler uses vocabulary or custom word/phrases.*
  • Digital Dialler: SIA, Contact ID, 4 + 2, and Pager.*
  • Installer telephone (buttset) test feature.
  • Ness-RP PC programming software includes conflict resolution to easily highlight differences between control and PC. Connection methods include Dial-up (including automatic answering machine bypass), ethernet, or local from RS-232 port or house phone jack.

  * Some features are not available on all models.



AUTOMATION & INTEGRATION

  • Create lifestyle enhancing comfort, convenience, and security.
  • Logic programming with Ness’ powerful “Whenever/ And/Then” RULES Programming allows almost any imaginable operation. No need to chain rules together. Any
  • single “Whenever” event can have one or more ANDs and THENs (conditions and commands).
  • Rules utilize easy to understand text-based references.
  • Control lighting using RS-232 serial or 2-way Power Line Control (PLC) ports for On, Off, Dim, All On, All Off commands.
  • Sunset/Sunrise calculation and activation / onboard astronomic clock.
  • Transmit and receive custom serial ASCII strings.
  • Read Temperature Sensors and communicate with Thermostats.
  • Turn on Tasks, Lights, Outputs via Keypad or Telephone Remote or via the Ethernet Interface and “Virtual Keypad”.
  • IR integration to control any device that supports IR remote control, (air con, CD, DVD, TV etc).
  • Networks with a broad range of other systems.



POWER SUPPLY

  • Heavy Duty 2.5 Amp power supply w/ 1.5 Amp continuous
  • Master power switch and Low battery disconnect.
  • PTC (fuseless) resettable overload protection.
  • Multiple auxiliary power terminals.

VALUE PACKAGE - M1 GOLD 14" KIT including NAVIGATOR KEYPAD

The Ness M1 Gold offers unequalled value to System integrators, installers, and end-users.

Unlike panels that may be strong in automation but weak in security (or vice versa), the M1 Gold boasts a rock-solid security foundation with the most imaginative and powerful automation functionality available.

Integrators and Installers will value the flash memory firmware, RS-232 serial port, ethernet connectivity option, fast PC programming, and ease of installation.

End users will welcome the quality and futuristic capabilities of the versatile keypad, voice telephone dialler and the built-in telephone remote. The 500+ word vocabulary pleasantly announces system status, configurable in any sequence to alleviate user intimidation.

M1 offers the flexibility to integrate industry-standard systems and components for easy upgrades and system expansion. In addition to the powerful digital dialler, the M1 has a built-in voice dialler, which can call any phone, on or off-site, including a mobile phone. Remote telephone control capability allows you to perform tasks; such as, change the temperature setting, control the water heater, lower the garage door, set lighting scenes, arm/disarm the system, control sprinklers, and more by simply picking up the phone – any phone.

Supplied With
  • Ness M1 Gold Module
  • M1 Navigator Touch Screen Keypad
  • Power Assy kit (Inc 17VDC Power Supply, 12Volt 7 A/H Battery, dialler lead and Tamper switch & brackets.)
  • 14" tamper kit
  • 14" metal housing
  • Accessory kit
  • Manuals



     Made In Australia Made In Australia by NESS
