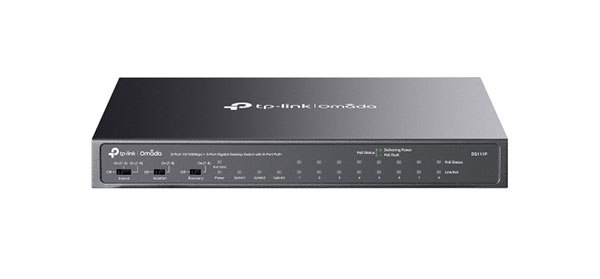

TP-Link DS111P 8-Port 10/100 PoE Switch 65W

TP-LINK DS111P 8-PORT 10/100 POE SWITCH 65W

SKU: 126-203

Overview
Specifications
Downloads

DS111P

Omada 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m (802 ft) data and power transmitting range under Extend Mode**
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and Play. No configuration or central management required.?

HARDWARE FEATURES
Interface	• 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate	5.6544 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W
Mac Address Table	2K
Jumbo Frame	16 KB
Switching Capacity	7.6 Gbps
Dimensions ( W x D x H )	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption	• 5.61 W (220 V/50 Hz. no PD connected) • 77.32 W (110 V/50 Hz. with 65 W PD connected)
Max Heat Dissipation	• 19.13 BTU/h (no PD connected) • 263.7 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4/1–8** • Isolation Mode: Ports 1–8 • PoE Auto Recovery: Ports 1–8 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode: Ports 1–4/1–8**
• Isolation Mode: Ports 1–8
• PoE Auto Recovery: Ports 1–8
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• DS111P • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

OTHERS

Certification

FCC, CE, RoHS

Package Contents

• DS111P
• Power Adapter
• Installation Guide
• Rubber Feet

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

DS111P

Omada 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m (802 ft) data and power transmitting range under Extend Mode**
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and Play. No configuration or central management required.?
