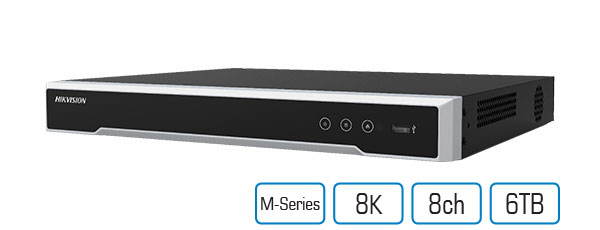

Hikvision DS-7608NI-M2/8P 8ch M-Series NVR & 6TB HDD

HIKVISION DS-7608NI-M2/8P 8CH M-SERIES NVR & 6TB HDD

SKU: 114-435-6

Hikvision DS-7608NI-M2/8P M-Series
8CH 1U 8 PoE 8K NVR

Hikvision DS-7608NI-M2/8P 8CH Ultra Series NVR inc 6TB HDD 128Mbps Bit Rate Input Max(up to 8-ch IP video),8x8MP decoding capability,HDMI up to 8K, 2 SATA Interfaces, 8 independent PoE network interfaces, alarm I/O: 4/1, 380 1U case

H.265+/H.265/H.264+/H.264 video formats
Up to 8ch IP camera inputs
Up to 8ch @ 8MP decoding capacity
Up to 128 Mbps incoming bandwidth
Inc 6TB HDD

Video And Audio

IP Video Input
8-ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth128 Mbps
Outgoing Bandwidth256 Mbps
HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
VGA Output1920 × 1080/60Hz
Video Output ModeHDMI/VGA independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Dual-Stream RecordingSupport
Decoding FormatH.265+/H.265/H.264+/H.264
Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Synchronous Playback8-ch
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 120 W
StandardIEEE 802.3 af/at

Auxiliary Interface

SATA2 SATA interfaces
CapacityUp to 16 TB capacity for each HDD
Alarm In/Out4/1
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 15 W (without HDD and PoE off)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight≤ 3 kg (without HDD, 2.2 lb.)

Certification

FCCPart 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
