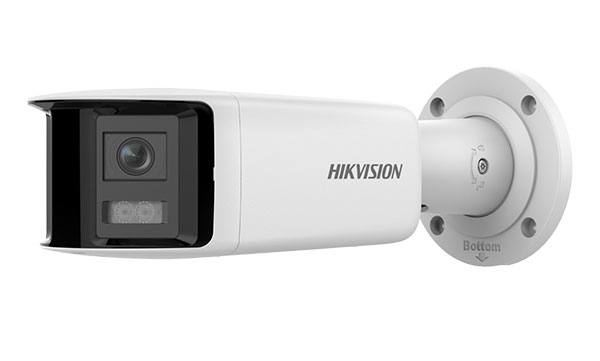

Hikvision DS-2CD2T67G2P-LSU/SL(C) 6MP ClrVu Blt Dual 2.8

Camera

• Image Sensor2 × 1/2.5" Progressive Scan CMOS
• Max. Resolution3632 × 1632
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens TypeFixed focal lens, dual lens, 2.8 mm
• Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
• Lens MountM12
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field2 m to ∞

DORI

• DORI2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes

Video

• Main Stream

  50 Hz: 20 fps (3632 × 1632)

  60 Hz: 20 fps (3632 × 1632)

• Sub-Stream

  50 Hz: 20 fps (1200 × 536, 960 × 432)

  60 Hz: 20 fps (1200 × 536, 960 × 432)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region(s) for main stream

Audio

• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters SwitchYes
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

• Built-In MicrophoneYes
• Built-In SpeakerMax. power consumption: 1 W, max. sound pressure level: 10 cm: 97 dB.
• Audio

  1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
• Reset KeyYes

Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),

  Scene change detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

General

• Power

  12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

• MaterialFront cover: metal, body: metal, bracket: metal
• Dimension118.6 mm × 105.1 mm × 306.5 mm (4.7" × 4.1" × 12.1")
• Package Dimension405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")
• WeightApprox. 1400 g (3.1 lb.)
• With Package WeightApprox. 2100 g (4.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionAnti-banding, heartbeat, mirror, flash log, pixel counter
• Flashing LightYes

Approval

• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
