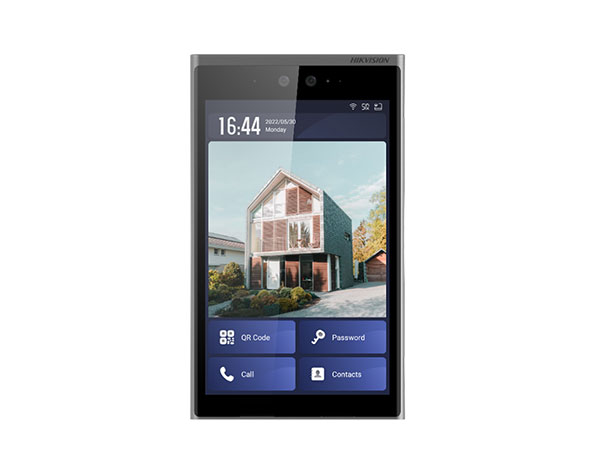

Hikvision DS-KD9633-WBE6 Face Recognition Door Station WiFi

System Parameters

• Operating SystemAndroid 7.1
• ROM4 GB
• RAM2 GB
• CPUEmbedded Processor

Display Parameters

• Screen Size10.1-inch
• Operation MethodTouch screen
• TypeColorful IPS
• Resolution1280 × 800
• Brightness410 cd/m²

Video Parameters

• Supplement LightLow illumination, IR supplement lights
• Video StandardH.264
• LensLow illumination 2 x 2 MP HD colorful camera
• FOVHorizontal: 88°, Vertical: 44°
• WDR

  Support



• Resolution2 MP

Audio Parameters

• Audio Compression StandardG.711 U, G.711 A
• Audio Input

  Built-in omnidirectional microphone



• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

Capacity

• Fingerprint Capacity/
• User Capacity20000
• Card Capacity100000
• Face Capacity10000
• Linked Indoor Station Capacity500
• Event Capacity/
• Sub Door Station Capacity16

Network Parameters

• Communication ProtocolTCP/IP, RTSP
• Wired Network10/100/1000 Mbps self-adaptive Ethernet
• Wi-FiReserved
• BluetoothReserved
• 3G/4G/

• Authentication
• Card Reading Frequency13.56 MHz

Device Interfaces

• Alarm Input4 (2 exit butttons and 2 door contacts by default)
• Network Interface2 RJ45 (1 reserved)
• TAMPER1
• Exit Button2 (1 for lock control and 1 for DS-K2M060 relay control)
• RS-4852 (1 for Hikvision's card reader or elevator controller and 1 for DS-K2M060 by default)
• USB2 for internal use only
• Wiegand/
• TF Card1 (reserved)
• Alarm Output2 (reserved)
• Lock Control2 (1 relay and 1 RS-485 to control the DS-K2M060)
• Door Contact Input1
• Power Interface1

General

• InstallationSurface mounting & flush mounting
• Indicator0
• Weight1.265 kg
• Protective LevelIP65，IK07
• Working Temperature

  -30° C to 60° C (-22° F to 140° F)



• Working Humidity

  10% to 90%



• Dimensions271 mm × 159.2 mm × 26.5 mm (10.7'' × 6.3'' ×1'')
• Battery/
• Power Supply12 VDC, 2 A
• Application EnvironmentOutdoor
• Power Consumption≤ 18 W
• LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Lithuanian,Estonia,Latvian,Norwegian,Danish,Slovakia,Hebrew,Swedish,Finnish,TraChinese,Mongolian,HongKongTraChinese
