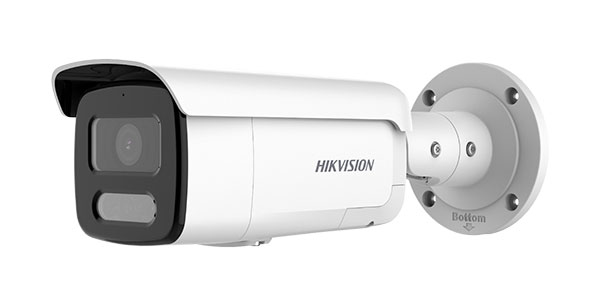

Hikvision DS-2CD2T47G2-LSU/SL 4MP ColorVu LiveGuard 2.8mm

Camera

• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time1/3 s to 1/100,000 s
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focal Length & FOV

  2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°

  4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°

  6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7°

• Lens MountM16
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 3.1 m to ∞

  4 mm: 5.4 m to ∞

  6 mm: 12.1 m to ∞

DORI

• DORI

  2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m

  4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

  6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m

Illuminator

• Supplement Light TypeWhite light
• Supplement Light RangeUp to 60 m
• Smart Supplement LightYes

Video

• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.265 and H.264 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR), microSD/microSDHC/microSDXC card (512 GB) local storage

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchAuto, Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR≥ 52 dB
• Image EnhancementBLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-In MicrophoneYes
• Built-In Speaker2 W, 10 cm: 97 dB
• Audio

  1 input (line in), two-core terminal block , max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

  1 output (line out),two-core terminal block , max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm

  Visual alarm

  1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

• Reset KeyYes

Event

• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

  Scene change detection

• LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output

Deep Learning Function

• Face CaptureYes

General

• Power

  12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W

• Dimension289.5 mm × Ø105 mm (11.4"× Ø4.1")
• Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
• WeightApprox. 1165 g (2.6 lb.)
• With Package WeightApprox. 1639 g (3.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

• EMC

  FCC SDoC: 47 CFR Part 15, Subpart B;

  CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;

  RCM: AS/NZS CISPR 32: 2015;

  IC VoC: ICES-003: Issue 6, 2016;

  KC: KN 32: 2015, KN 35: 2015

• Safety

  UL: UL 60950-1;

  CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

  CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

  LOA: IEC/EN 60950-1

• Environment

  CE-RoHS: 2011/65/EU;

  WEEE: 2012/19/EU;

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
