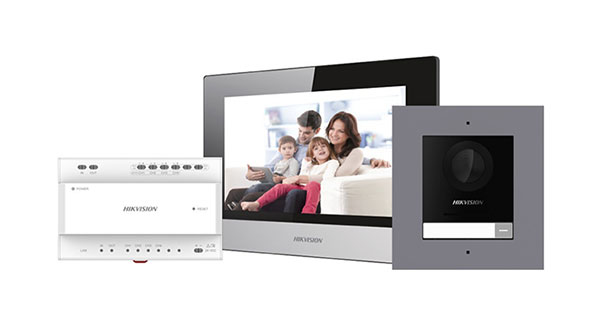

Hikvision DS-KIS702Y 2-Wire Intercom Kit

Door Station/System Parameters

• ProcessorEmbedded microcontroller
• Operation SystemEmbedded Linux operation system
• Operation ModeOne touch key

Door Station/Video Parameters

• Camera

  2MP super definition camera



• Resolution

  Main stream: 1920 × 1080, (720p

  configurable); sub stream: 720 × 480



• Night Vision

  Support low light and IR light supplement

  mode

• Backlight CompensationSupport
• Digital Noise ReductionSupport
• WDRTrue WDR
• Field Of View

  Horizontal 146°, vertical 82°



• Video Compression StandardH.264
• Stream

  Main stream: 1080p@30fps, 720p@30fps

  (configurable); sub stream: D1

• Motion DetectionSupport
• Flash-Avoid Frequency50 Hz, 60 Hz

Door Station/Audio Parameters

• Audio InputBuilt-in omnidirectional microphone
• Audio OutputLoudspeaker, 20 cm sound effect > 80 db
• Audio QualityNoise suppression and echo cancellation
• Audio Compression StandardG.711 U
• Audio Compression Rate64 Kbps
• Audio IntercomFull-duplex two-way audio intercom

Door Station/Device Interfaces

• Debugging Port1
• RS-4851 (1 for Hikvision's sub module communication)
• Alarm Input4 (2 exit butttons and 2 door contacts by default)
• Lock Control2 (2 relay, max to 30 VDC, 2 A)
• TAMPER Switch1
• Power InterfaceTwo-wire

Door Station/General

• Working Temperature-40 °C to 60 °C (-40 °F to 140 °F)
• Working Humidity10% to 90%
• Dimension

  100 mm × 98 mm × 42 mm (3.94" × 7.8\"

  × 1.65) "

• InstallationWall mounting
• Protection Level

  IP 65



• Button1
• Power Input

  Powered by KAD704Y or KAD706Y series distributor



Indoor Station/System Parameters

• Operation SystemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

Indoor Station/Display Parameters

• Display Screen7-inch TFT LCD
• Display Resolution1024 × 600
• Operation MethodCapacitive touch

Indoor Station/Audio Parameters

• Audio InputBuilt-in omnidirectional microphone
• Audio Output

  Built-in loudspeaker



• Audio QualityNoise suppression and echo cancellation
• Volume

  Local or software control



• Audio Compression StandardG.711 U, G.711 A
• Audio Compression Rate64 Kbps

Indoor Station/Network Parameters

• Wired Network

  Two-wire network



• Wireless NetworkWi-Fi 802.11b/g/n
• Protocol

  TCP/IP, SIP, RTSP



Indoor Station/Device Interfaces

• Network Interface

  Two-wire interface



• RS-4851
• Alarm Input8 zones alarm input
• Relay Output2（30 V Max.）
• TF CardSupport, Max. 128 GB

Indoor Station/General

• Power Supply

  Powered by KAD704Y or KAD706Y distributor



• Power Consumption≤ 4 W
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity10% to 90%
• Dimensions (W × H × D)

  200 mm × 140 mm × 23.6 mm (7.87" ×

  5.51 × 0.93\")"

Video Audio Distributor/Interfaces

• Network Interface

  1 RJ45



• Two-Wire Interface6 (2 for cascading and 4 for devices)
• Signal Indicator6
• Power Indicator1
• Reset1

Video Audio Distributor/General

• Power Supply24 VDC
• Power ConsumptionCH1 to CH3＜4 W, CH4＜8 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
