Manufacturer: Hikvision

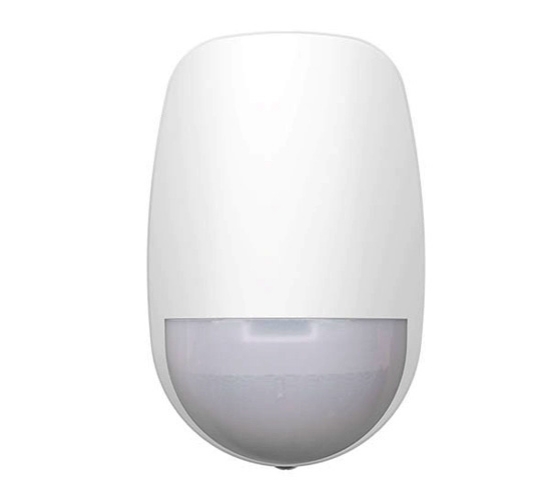

HIK DS-PDC15-EG2-WB AX PRO Wireless Curtain PIR

HIKVISION DS-PDC15-EG2-WB WIRELESS CURTAIN PIR DETECTOR
SKU: 114-257

Wireless PIR Curtain Detector GEN2

  • Long range with narrow angle detection
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission


Detection Performance

  • Detection MethodPassive Infrared
  • Detection Range15m
  • Detection Angle6.3°
  • Detection Zones18
  • Detectable Speed0.3~2m/s
  • Pet ImmunityNone
  • White Light Filter6500lux
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport

Feature

  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport

Interface

  • Power SwitchPower Up Enrolling
  • LED IndicatorBlue(Alarm)

Transmission

  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency433MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.2Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics

  • Standard Battery Life5 years in work status (being triggered 20 times per day)
  • Power SupplyBattery Powered
  • Battery TypeCR123A × 1
  • Typical Voltage3V

General

  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)65.5mm × 103mm × 48.5mm
  • 128g
  • Mounting Height2.4 to 3.6m
  • Mounting MethodWall
  • Application ScenarioIndoor
  • BracketOptional Wall & Ceiling Accessory

Brochure



Wireless PIR Curtain Detector GEN2

  • Long range with narrow angle detection
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission
