Hik AX PRO KIT DS-PWA96-Kit-WB/12V

HIKVISION AX PRO KIT DS-PWA96-KIT-WB/12V
SKU: 114-278

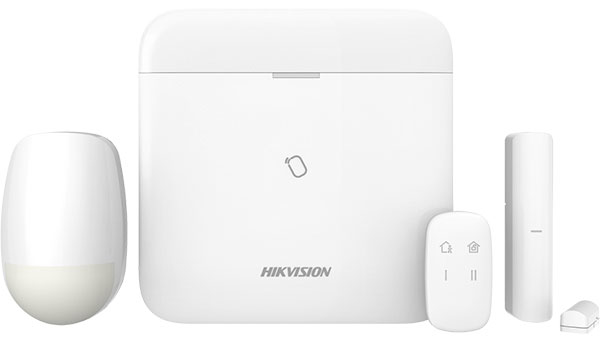

Hikvision AX PRO KIT DS-PWA96-Kit-WB/12V GEN2

AX PRO Kit (433MHz)

INCLUDES
1 x Hikvision DS-PWA96-M-WB/12V Control Panel 12V version
1 x 114-253 Hikvision DS-PKF1-WB AX PRO Wireless Keyfob
1 x 114-256 Hikvision DS-PDP15P-EG2-WB AX PRO Wireless PIR
1 x 114-261Hikvision DS-PDMC-EG2-WB AX PRO Wireless Magnetic Contact

Includes 12VDC Plug Pack (AU)

Software features

  • Tag48
  • Area

    32



  • Zones

    96 (up to 48 PIRCAMs)



  • Onboard video clips

    4



  • Installer1
  • User

    46



  • Admin1
  • Voice Prompt

    Supported



  • Loudspeaker built in

    Supported



  • Tag reader built in

    Supported



  • Memory Log stored5000
  • Programming tools

    Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud



  • Firmware upgrade

    APP/Web Portal



  • Arm modes

    Away/Stay



  • Automatic Arm/Disarm Timers

    Supported



  • Forced Arming with Open Zones

    Supported



  • Diagnostics via the APP or Web

    Supported



  • ARC protocol

    SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)

    Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)

    Supports video verification and remote control

  • User APP for operating

    Supported



  • Installer APP for programmingSupported
  • Web server for maintenance (offline configuration)Supported

Hardware features

  • RS232 output

    Supported



  • SIM slot

    Dual



RF transmission

  • Two-way Wireless CommunicationSupport
  • RF Frequency

    433Mhz



  • Wireless SecurityFrequency Hoping 128 AES Encryption
  • 3/4G on board

    Supported



Electrical characteristics

  • Power supply

    Built in power supply, 12 VDC



  • Battery type

    Built in on board Battery Li



  • Battery life spanUp to 16 hours

Wireless transmission

  • Wired network

    Supported



  • Wi-Fi Standard

    Supported



Display

  • LEDs Status

    Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power



General

  • Operation temperature

    -10 °C to +55 °C



  • Shell materialPlastic
  • Dimension(WxHxD)

    170.0 mm (6.7") x 170.0 (6.7\") mm x 38.6 mm (1.5\")



  • 557.5 g(19.7 oz)



  • Colorwhite

Device management

  • Keyfob

    48



  • Wireless sounder6 (3 internal+3 External)
  • Keypad

    8 (Including Tag reader)



  • Wireless Repeater4
  • PIR Cam

    Supported

Brochure

Hikvision AX PRO KIT DS-PWA96-Kit-WB/12V GEN2

AX PRO Kit (433MHz)

INCLUDES
1 x Hikvision DS-PWA96-M-WB/12V Control Panel 12V version
1 x 114-253 Hikvision DS-PKF1-WB AX PRO Wireless Keyfob
1 x 114-256 Hikvision DS-PDP15P-EG2-WB AX PRO Wireless PIR
1 x 114-261Hikvision DS-PDMC-EG2-WB AX PRO Wireless Magnetic Contact

Includes 12VDC Plug Pack (AU)
