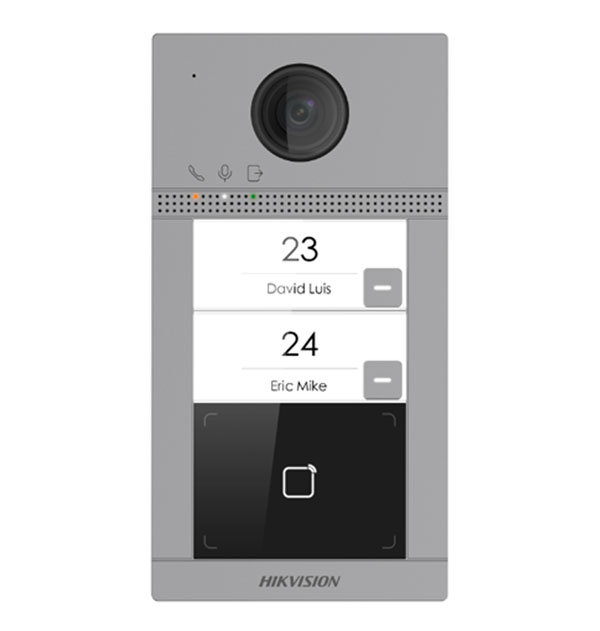

Hikvision DS-KV8213-WME1(B) DoorStation 2 Button Surface

System Parameters

• Operating SystemEmbedded Linux operation system
• ROM32 M
• RAM256 M
• CPUEmbedded MCU Processor

Display Parameters

• Screen Size/
• Operation Method/
• Type/
• Resolution/

Video Parameters

• Lens1
• Resolution

  Main stream : 1920 × 1080

  Sub stream : 720 × 480

• FOVHorizontal: 129° Vertical: 75°
• WDRSupport
• Supplement LightLow illumination IR supplement mode:3 m
• Video Compression StandardH.264

Audio Parameters

• Audio Compression StandardG.711 U
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker (More than 85 dB within 20 cm)
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

Capacity

• User Capacity/
• Face Capacity/
• Card Capacity/
• Linked Indoor Station Capacity2

Network Parameters

• Communication ProtocolTCP/IP, RSTP
• Wired Network10/100 Mbps self-adaptive Ethernet
• Wi-Fi Standard/
• Bluetooth Version/
• 3G/4G Standard/

Device Interfaces

• Alarm Input4
• Network Interface1
• TAMPER1
• Exit Button2
• RS-4851
• USB/
• Wiegand/
• TF Card0
• Alarm Output/
• Lock Control2
• Door Contact Input2
• Power Interface1

Performances

• Multi-Factor Authentication2000

General

• Button2
• InstallationSurface mounting/ Flush mounting
• Indicator3
• 385 g
• Protective LevelIP65, IK08
• Working Temperature-40° C to +55° C(-40° F to 131° F)
• Working Humidity10% to 95%
• Dimensions174 mm × 91 mm × 29 mm
• Battery/
• Application EnvironmentOutdoor
• Power Consumption＜ 10 W
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
