Manufacturer: Hikvision

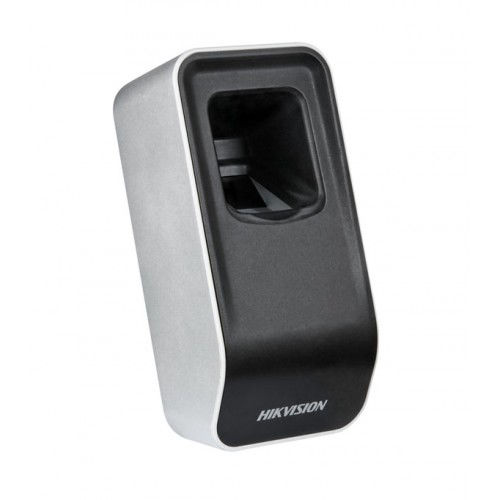

HIKVISION DS-K1F820-F

Fingerprint Enrolment Module
SKU: 114-151

DS-K1F820-F Fingerprint Recorder supports living fingerprint registration and identification. It can connect to the computer directly via USB interface, and upload/download fingerprint characteristic data and image to the controller/ module. It supports the function of checking the completeness of registered fingerprint templates.

System Parameters
Operation System: Windows XP, Windows7, and Windows 10
Fingerprint Template Size: 256 × 288 (pixel)
Fingerprint Module: Optical, Red Backlight
Resolution: 508 dpi
Device Interfaces
USB Interface: USB2.0
General
CPU: 32bit MCU
Working Voltage: 5 VDC, 200mA
Dimensions (L×W×H): 100mm × 48mm × 35mm (3.9” × 1.9” × 1.4”)
Working Humidity: 20% to 80% (Non-Condensing)
Working Temperature : -30°C to +70°C (-22°F to 158°F)

Brochure

DS-K1F820-F Fingerprint Recorder supports living fingerprint registration and identification. It can connect to the computer directly via USB interface, and upload/download fingerprint characteristic data and image to the controller/ module. It supports the function of checking the completeness of registered fingerprint templates.
