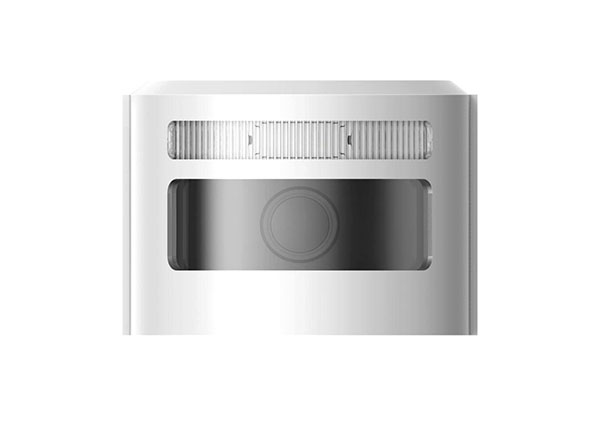

Picture of Hikvision DS-PDCM15PF-IR RF Camera Module

Manufacturer: Hikvision

Hikvision DS-PDCM15PF-IR RF Camera Module

HIKVISION DS-PDCM15PF-IR RF CAMERA MODULE

SKU: 114-134

Overview
Specifications
Downloads

Hikvision DS-PDCM15PF-IR RF Camera Module

1/2.7" Progressive Scan CMOS
2.0 mm fixed lens
3D Digital Noise Reduction
Easy Installation
The direction of the Angle can be adjusted to fit the TT Detector's Angle
Protection Level IP66

Detection Performance

Detection MethodVideo Verification

Feature

Digital Noise Reduction3D
Focal length2.0mm@F2.25

Video

Field Angle137.2°(H), 80.1°(V)
Image TypeJPEG
Resolusion640*480;320*240;160*120
Fill LightInfrared Light
Fill Range15m
Day/Night SwitchAuto

Interface

Communication Interface1 12-Bit Data Interface

Electrical Characteristics

Power Supply3 VDC
Power Consumption1200mA

General

Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
Operation Humidity10% to 90%
IP RateIP66
Dimension(WxHxD)74.1mm x 72.35mm x 53mm
Weight155g

Hikvision DS-PDCM15PF-IR RF Camera Module

1/2.7" Progressive Scan CMOS
2.0 mm fixed lens
3D Digital Noise Reduction
Easy Installation
The direction of the Angle can be adjusted to fit the TT Detector's Angle
Protection Level IP66
