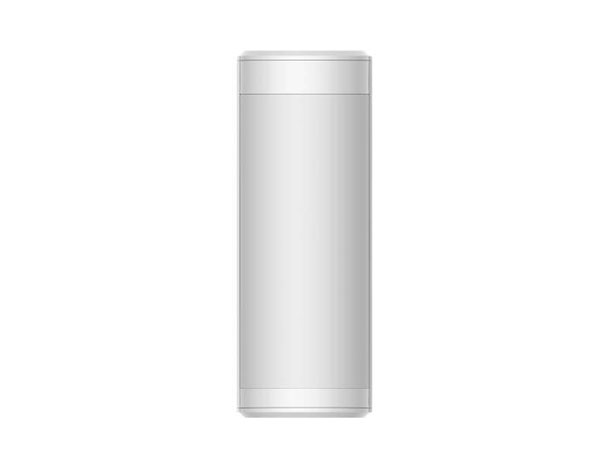

Hik DS-PDTT15AM-LM-WB Wireless Tri-Tech detector

Detection Performance

• Detection MethodPassive Infrared;Microwave
• Detection Range15 m
• Detection Angle90° @ 180° adjustable
• Detection Zones92
• Detectable Speed0.3～2m/s
• SensitivityAuto;Low
• White Light Filter10000lux
• Microwave Frequency24GHz(24.15～24.25GHz)
• Pet Immunity40Kg
• Digital Temperature CompensationSupport
• Anti-maskingSupport
• Adaptable Coverage

  Support,

  Pattern mask included

Feature

• Digital ProcessingTri-Signal Logic
• Sealed OpticsSupport
• Tamper ProtectionFront;Rear
• Environment Temperature IndicatorSupport
• Signal Strength IndicatorSupport
• Anti-Sway AnalyticsSupport

Interface

• Power SwitchPower up enrolling
• LED IndicatorGreen(top PIR), red(microwave), orange(bottom PIR), green+orange(mask), blue(alarm)

Transmission

• Transmission TechnologyTri-X Wireless
• Transmission MethodTwo-Way RF Wireless
• Transmission Frequency433MHz
• Transmission SecurityAES-128 Encryption
• Transmission Range(Free Space)1Km
• Frequency HoppingSupport
• Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics

• Standard Battery LifeUp to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures)
• Power SupplyBattery powered
• Battery TypeCR123A × 5
• Typical Voltage3 V

General

• Operation Temperature-25°C to 60°C (-13°F to 140°F)
• Storage Temperature-25°C to 60°C (-13°F to 140°F)
• Operation Humidity10% to 90%
• IP RateIP65
• Dimension(WxHxD)75 mm × 202 mm × 73 mm
• Weight600 g
• Mounting Height0.8 to 1.2 m
• Mounting MethodWall
• Application ScenarioOutdoor
