Manufacturer: Hikvision

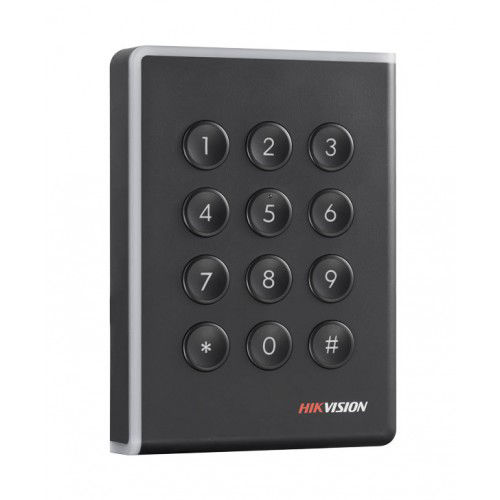

Hikvision DS-K1108MK Prox Card Reader with KeyPad

RS485 / Wiegand Card Reader with Keypad
SKU: 114-125

Hikvision DS-K1108MKN Proximity Card Reader with Keypad

The Hikvision DS-K1108MN Series of card readers supports RS-485 and Wiegand (W26/W34) protocols (Site selectable).
The built-in 13.56 MHz Mifare card reading module meets the ISO 14443-A standard and reads Mifare ID cards.

  • LED Indicator Displays Reader Status
  • Tamper-Resistant Alarm
  • Supports Mifare Cards
  • RS-485 and Wiegand (W26/W34) Protocols

System Parameters

  • Card Reading Distance: Mifare Card:=50 mm
  • ID Settings: Setting by the DIP Switch on the Main Board
  • Processor: 32-bit

General

  • Audio Alert: Beeper
  • Power Supply: 12VDC
  • Communication Interface: RS-485 / Wiegand (DIP Switch Selectable)
  • Power Consumption: =2W
  • LED Indicator: Power Indicator; Status LED Indicator
  • Protection Level: IP64
