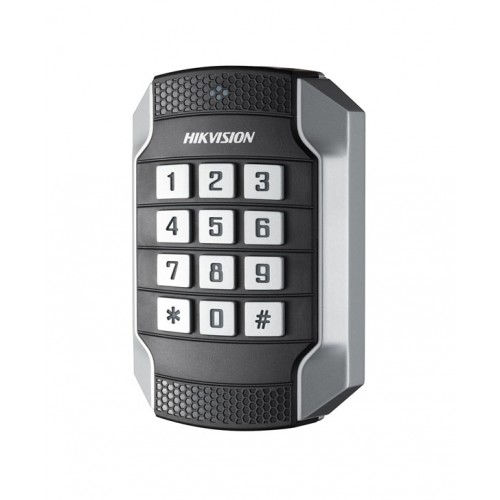

Hikvision DS-K1104MKN Vandal Proof Proximity Card Reader with Keypad
The Hikvision DS-K1104 Series of card readers supports RS-485 and Wiegand (W26/W34) protocols (Site selectable).
The built-in 13.56 MHz Mifare card reading module meets the ISO 14443-A standard and reads Mifare ID cards.
- IK10 Vandal Proof - Zinc-alloy housing
- LED Indicator Displays Reader Status
- Tamper-Resistant Alarm
- Supports Mifare Cards
- RS-485 and Wiegand (W26/W34) Protocols
- Used for Card and Code security, or can be used in 'Code Authentication Mode' when used with Hikvision Access Controllers.
System Parameters
- Card Reading Distance: Mifare Card:≤50 mm
- ID Settings: Setting by the DIP Switch on the Main Board
- Processor: 32-bit
General
- Audio Alert: Beeper
- Power Supply: 12VDC
- Communication Interface: RS-485 / Wiegand (DIP Switch Selectable)
- Power Consumption: ≤2W
- LED Indicator: Power Indicator; Status LED Indicator
- Protection Level: IP65
