Manufacturer: Hikvision

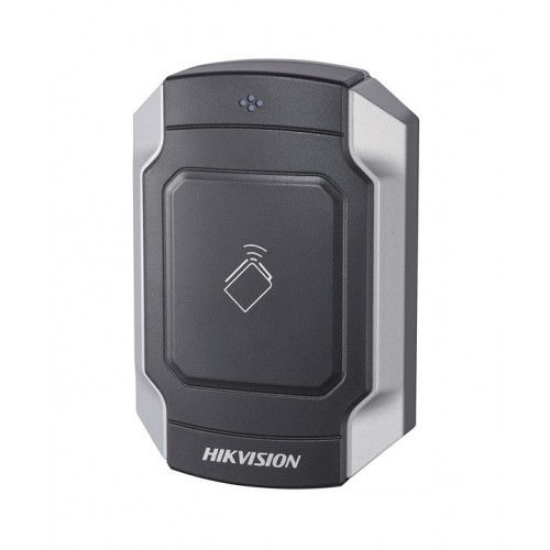

Hikvision DS-K1104MN Vandal Proof Proximity Card Reader

Vandal Proof RS485 / Wiegand Card Reader
SKU: 114-122

Hikvision DS-K1104MN Vandal Proof Proximity Card Reader

The Hikvision DS-K1104 Series of card readers supports RS-485 and Wiegand (W26/W34) protocols (Site selectable).
The built-in 13.56 MHz Mifare card reading module meets the ISO 14443-A standard and reads Mifare ID cards.

  • IK10 Vandal Proof - Zinc-alloy housing
  • LED Indicator Displays Reader Status
  • Tamper-Resistant Alarm
  • Supports Mifare Cards
  • RS-485 and Wiegand (W26/W34) Protocols

System Parameters

  • Card Reading Distance: Mifare Card:≤50 mm
  • ID Settings: Setting by the DIP Switch on the Main Board
  • Processor: 32-bit

General

  • Audio Alert: Beeper
  • Power Supply: 12VDC
  • Communication Interface: RS-485 / Wiegand (DIP Switch Selectable)
  • Power Consumption: ≤2W
  • LED Indicator: Power Indicator; Status LED Indicator
  • Protection Level: IP65
System Parameters
Card Reading Frequency: 13.56MHz
Card Reading Distance: ≤50mm (≤1.97")
ID Settings: Setting by the DIP Switch on the Main Board
Processor: 32-bit
General
Working Current: ≤500mA
Audio Alert: Beeper
Power Supply: 12VDC
Power Consumption: ≤2W
LED Indicator: Power Indicator; Status LED Indicator
Protection Level: IP 65
Installation: Applied for 86 & 120 Gang Box
Certification: CE, FCC
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 118mm × 76mm × 23mm (4.65'' × 2.99'' × 0.91")
Weight: ≤ 0.52Kg
