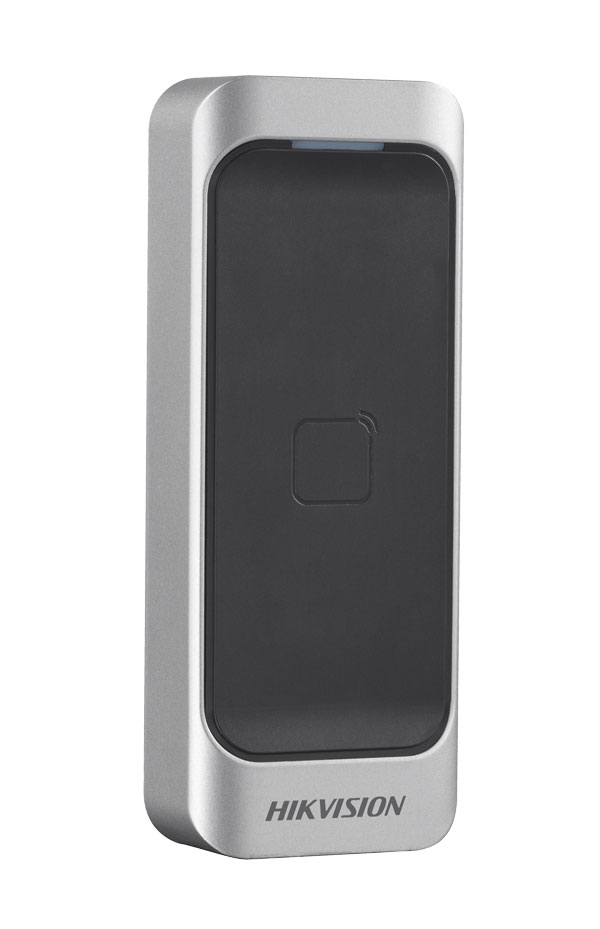

Hikvision DS-K1107MN Proximity Card Reader
The Hikvision DS-K1107 Series of card readers supports RS-485 and Wiegand (W26/W34) protocols (Site selectable).
The built-in 13.56 MHz Mifare card reading module meets the ISO 14443-A standard and reads Mifare ID cards.
- LED Indicator Displays Reader Status
- Tamper-Resistant Alarm
- Supports Mifare Cards
- RS-485 and Wiegand (W26/W34) Protocols
System Parameters
- Card Reading Distance: Mifare Card:=50 mm
- ID Settings: Setting by the DIP Switch on the Main Board
- Processor: 32-bit
General
- Audio Alert: Beeper
- Power Supply: 12VDC
- Communication Interface: RS-485 / Wiegand (DIP Switch Selectable)
- Power Consumption: =2W
- LED Indicator: Power Indicator; Status LED Indicator
- Protection Level: IP64
