Hikvision DS-2CE19H8T-AIT3ZF 5MP TVI Bullet 2.7-13.5mm

5MP Ultra Low-Light TVI Bullet Camera

SKU: 114-034

Overview
Features
Specifications
Downloads
Mobile Apps

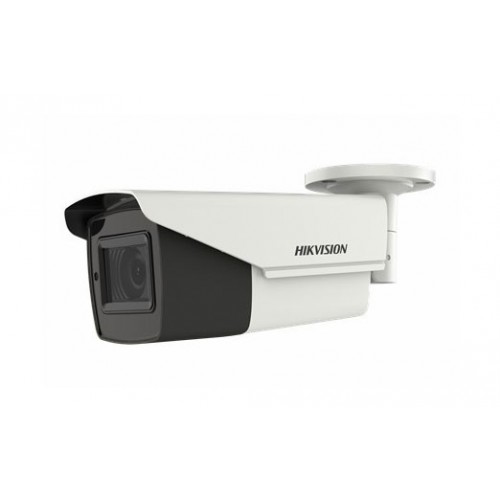

DS-2CE19H8T-AIT3ZF ULTRA LOW-LIGHT TVI BULLET CAMERA

Hikvision DS-2CE19H8T-AIT3ZF 5MP@20fps, 4MP@25fps(P)/30fps(N)(Default),EXIR, 80m IR, Auto Focus ,Outdoor Bullet,ICR, 0.003 Lux/F1.2,12 VDC/AC24V, Smart IR,True WDR,3D DNR,OSD Menu(Up the Coax), IP67, 2.7-13.5mm Motorized Vari-focal Lens,Support TVI/AHD/CVI/CVBS video signal output

This TVI Camera is a high performing ULTRA LOW Light performance camera.

Great for new installations or retrofit to existing coax cable for up to 200 Meters.

5 Megapixel high-performance CMOS
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
2.7~13.5 mm Motorized Lens
2560 × 1944 resolution
EXIR 2.0, smart IR, up to 80 m IR distance
OSD menu, 3D DNR, 130 dB true WDR
EXIR technology, up to 40m IR distance
IP67 weatherproof
Up the Coax(HIKVISION-C)

Camera
Image Sensor:	5-megapixel progressive scan CMOS
Signal System:	PAL/NTSC
Effective Pixels:	2560 (H) × 1944 (V)
Min. Illumination:	Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:	1/25(1/30) s to 1/50,000 s
Lens:	2.7 mm to 13.5 mm motorized varifocal lens
Lens Mount:	φ14
Adjustment Range:	Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°
Day& Night:	IR cut filter with auto switch
Video Frame Rate:	PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Synchronization:	Internal Synchronization
Menu
3D DNR (Digital Noise Reduction):	Level 1 to 9
D/N Mode:	Auto/Color/BW (Black and White)
White Balance:	Auto / Manual
BLC:	Support
AGC:	Support
WDR:	Yes
Language:	English
Function:	Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Out:	1 HD analog output
General
Operating Conditions:	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
Weather Proof:	IP67
IR Range:	Up to 80m
Communication :	Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:	84.5 mm × 92 mm × 255.1 mm (3.33"" × 3.62"" × 10"")
Weight:	Approx. 930 g (2.05 lb.)
