Manufacturer: Hikvision

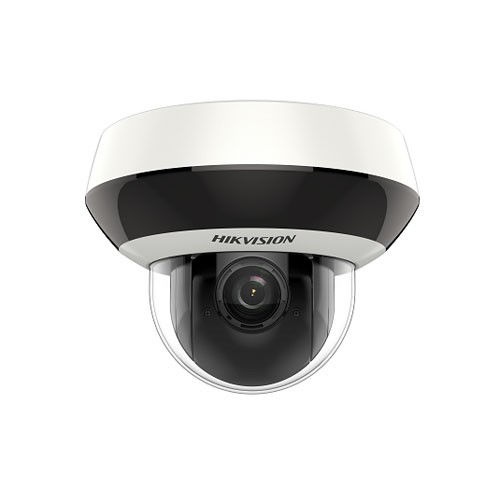

HIKVISION DS-2DE2A404IW-DE3 Mini PTZ 4MP 4X

4MP Mini IR PTZ Camera
SKU: 114-023

4MP Mini IR PTZ Camera

This Mini-Series of PTZ Camera can be widely used for wide ranges of high-definition. "Powered by Hikvision Darkfighter technology".

Hikvision DS-2DE2A404IW-DE3 (2.8-12MM) 4MP 4X Mini PTZUp to 2560 × 1440 @25fps resolution, Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 4× optical zoom, 16× digital zoom120 dB WDR, 3D DNR, HLC, EIS, Regional Exposure, Regional Focus, 12 VDC & PoE, IK10, IP66, Up to 20 m IR distanceSupport H.265+/H.265 video compression.



Mounting Options

  • Wall mount bracket - DS-1294ZJ-PT
  • 1/2.8” Progressive Scan CMOS
  • Up to 2560 x 1440 resolution
  • Ultra-low light:
    • Colour: 0.005 Lux @(F1.6, AGC ON)
    • B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
  • 4 × optical zoom, 16× digital zoom
  • Up to 20 meters IR range
  • 12V DC±10% & PoE(802.3af)
  • 120 dB WDR, 3D DNR, HLC, BLC
Camera
Image Sensor: 1/3" progressive scan CMOS
Effective Pixels: 2560(H)×1440(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC: Auto/Manual
HLC: Support
WDR: 120dB
Shutter Time: 50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day& Night: ICR
Digital Zoom: 16×
Privacy Masking: 24 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 2.8 to 12mm, 4× optical zoom
Zoom Speed: Approx. 2s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 100° to 33° (Wide-Tele)
Vertical field of view: 53° to 18° (Wide-Tele)
Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance: 10 to 1500mm (wide-tele)
Aperture Range: F1.6 to F2.7
Pan & Tilt
Pan Range: 0° to 330°
Pan Speed: Configurable, from 0.1°/s to 100°/s,
Preset speed: 100°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Configurable, from 0.1°/s to 100°/s
Preset Speed: 100°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Power-off Memory: Support
Infrared
IR irradiation distance: 20m
IR irradiation angle: Adjustable by zoom
Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 2560 × 1440
Main Stream: 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream: 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: Support 2 areas with adjustable levels
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode: OFF/Audio input/Audio output
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users: Up to 20 users
Three-Stream: Support
Mini SD Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host Level: Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures: User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Hik-Connect: Support
General
Power Supply: 12 VDC & PoE
Power Consumption: Max.: 12 W (Max. 3.9 W for IR)
Working Temperature/Humidity: -20°C to 60°C (-4°F to 140°F)
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material: Aluminum alloy, PC, PC+ABS
Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.): Approx. 0.53 kg (1.17 lb)
