HIKVISION DS-2CE18U8T-IT3 8mp TVI Bullet 2.8mm

SKU: 114-015

Overview
Features
Specifications
Downloads

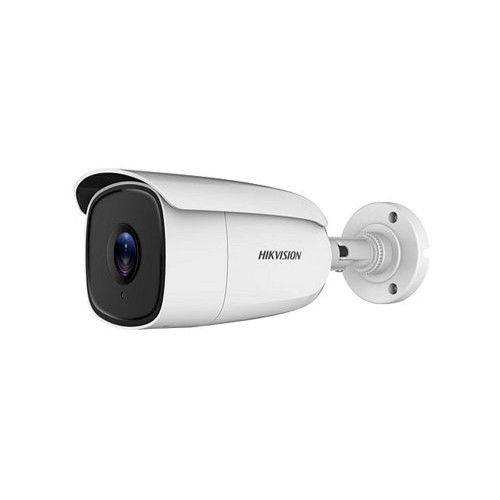

DS-2CE18U8T-IT3 8MP TRUE WDR EXIR Bullet Camera with 2.8mm Lens 60M IR Distance

The DS-2CE18U8T-IT3 camera is a high performing 8MP external TVI Technology TRUE WDR Bullet Camera that transmits 8MP in TVI technology over Coax cable.

Great for new installations or retrofit to existing coax cable for up to 500 Meters.

Hikvision DS-2CE18U8T-IT3 8MP TVI Bullet Camera, 2.8mm Lens 8.3MP @12.5fps(Default), 5MP@20fps, 4MP@25fps(P)/30fps(N), 2MP@25fps(P)/30fps(N), EXIR,60m IR, ICR, 0.003 Lux/F1.2, 12 VDC, Smart IR, True WDR，3D DNR,OSD Menu(Up the Coax) ,TVI & CVBS Output，IP67

Images are representative only and may vary slightly to actual item

Mounting Options

Junction Box - DS-1280ZJ-XS
Video Balun - DS-1H18

8 Megapixel (8.3MP) high-performance CMOS
3840 x 2160 resolution
Analogue HD output, up to 8MP resolution
2.8mm Lens
True WDR, 3D DNR
EXIR 2.0 Smart IR, up to 60m IR distance
IP67 weatherproof
Up the Coax (HIKVISION-C)

Camera
Image Sensor:	8.29 MP high performance CMOS
Effective Pixels:	3840 (H) × 2160 (V)
Shutter Time:	PAL: 1/12.5 s to 1/10,000 s NTSC: 1/15 s to 1/10,000 s
Lens Mount:	M12
Adjustment Range:	Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°
Day& Night:	IR cut filter with auto switch
Video Frame Rate:	PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
HD Video Output:	1 Analogue HD output
Synchronisation:	Internal Synchronisation
Menu
D/N Mode:	Auto / Colour / B/W
Auto White Balance:	Auto/Manual/Natural
BLC:	Support
Language:	English
General
Operating Conditions:	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	12 VDC ±25% *You are recommended to use one power adaptor to supply the power for one camera.
Weather Proof:	IP67
IR Range:	Up to 60m
Communication :	Up the coax Protocol: HIKVISION-C (Coaxitron)
Dimension:	? 70 mm × 224.7 mm (? 2.75" × 8.85" )
Weight:	Approx. 630 g (1.4 lb.)

DS-2CE18U8T-IT3 8MP TRUE WDR EXIR Bullet Camera with 2.8mm Lens 60M IR Distance

The DS-2CE18U8T-IT3 camera is a high performing 8MP external TVI Technology TRUE WDR Bullet Camera that transmits 8MP in TVI technology over Coax cable.

Great for new installations or retrofit to existing coax cable for up to 500 Meters.

Images are representative only and may vary slightly to actual item

Mounting Options

Junction Box - DS-1280ZJ-XS
Video Balun - DS-1H18
