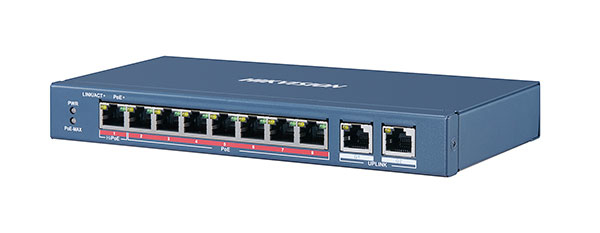

HIK DS-3E0310HP-E 8-Port Fast Unmanaged PoE Switch

Network Parameters

• Port Number1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × Gigabit RJ45 ports
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• Working ModeStandard mode (default); Extend mode
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
• Forwarding ModeStore-and-forward switching
• Ports For Long-Distance TransmissionPorts 1 to 8
• MAC Address Table16 K
• Internal Cache4 Mbits
• Switching Capacity5.6 Gbps
• Packet Forwarding Rate4.166 Mpps

PoE Power Supply

• PoE Standard

  Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

  Ports 2 to 8: IEEE 802.3af, IEEE 802.3at

• PoE Power Pin

  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPorts 1 to 8
• Max. Port Power

  Port 1: 90 W

  Ports 2 to 8: 30 W

• PoE Power Budget110 W

Dialing Function

• Long RangePorts 1 to 8: up to 300 m; and the speed rate of the port is 10 Mbps.

General

• Dimension (W × H × D)217.6 mm × 27.8 mm × 103.35 mm (8.6” × 1.1” × 4.1”)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Storage Humidity5% to 95% (no condensation)
• Gross Weight1.22 kg (2.69 lb)
• Net Weight0.55 kg (1.21 lb)
• Power Consumption In Idle10 W
• ShellMetal material, fan-free design
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Operating Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 2.5 A
• Max. Power Consumption120 W

Approval

• EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 19)
• SafetyUL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
