Manufacturer: Hikvision

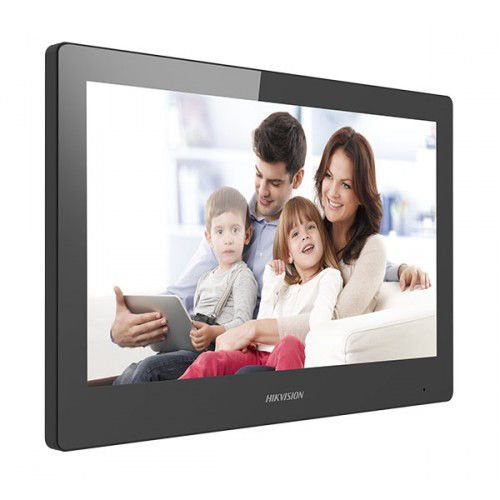

HIKVISION DS-KH8520-WTE1 10" Room Station

10" Room Station

SKU: 104-929

Hikvision DS-KH8520-WTE1 Gen2 10 Inch Video Intercom Room Station with WiFi

10-inch Colour TFT LCD, display resolution: 1024 x 600;10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;standard PoE / 12 VDC.TF card, max 32G.

System Parameters
Operation System:	Embedded Linux Operation System
Flash:	32MB
Memory:	128MB
Display Parameters
Display Screen:	10.1-inch colourful TFT LCD
Display Resolution:	1024 × 600
Operation Method:	Capacitive touch screen
Audio Parameters
Audio Input:	Built-in Omnidirectional Microphone
Audio Output:	Built-in Loudspeaker
Audio Compression Standard:	G.711 U
Audio Compression Rate:	64 Kbps
Audio Quality:	Noise Suppression and Echo Cancellation
Network Parameters
Wired network:	10/100 Mbps self-adaptive network
Wireless network:	Wi-Fi 802.11b/g/n
Network Protocol:	TCP/IP, SIP, RTSP
Network interface:	1 RJ-45 10/100 Mbps self-adaptive
Device Interfaces
Relay Output:	2
Alarm Input:	8-ch alarm inputs
RS-485:	1
TF Card (micro SD card):	Max to 32 G, SD 2.0 or lower version
General
Power Supply:	IEEE802.3af standard PoE, 12 VDC/1A
Power Consumption:	≤6W
Working Humidity:	10% to 90%
Working Temperature:	-10° C to + 55° C (14° F to 131° F)
Dimensions(L × W × H):	254 mm × 166 mm × 14.7 mm (10.0" ×6.5" × 0.58")

Hikvision DS-KH8520-WTE1 Gen2 10 Inch Video Intercom Room Station with WiFi

10-inch Colour TFT LCD, display resolution: 1024 x 600;10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;standard PoE / 12 VDC.TF card, max 32G.
