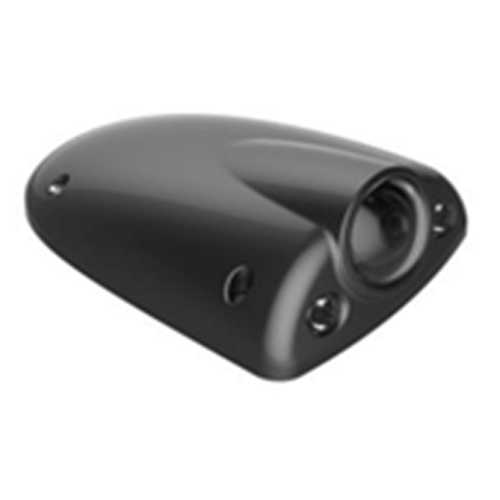

HIKVISION DS-2CD6520ET-IO In-Vehicle 2MP 4mm

Vehicle 2MP IPC 4MM

SKU: 104-841B

Overview
Features
Specifications
Downloads
Mobile Apps

2MP Vehicle Network Camera

Hikvision DS-2CD6520ET-IO is a high-resolution camera designed for vehicle scenarios such as the train, the public bus and school bus, as well as those with higher requirements for the vibration.

2MP 1080P Mobile IP Camera, 0lux with IR, 6mm fixed lens, FoV: 46°, 3-axis adjustment, 3D DNR, DWDR, H.264/MJPEG, 1920x1080 up to 30fps, DC12V & PoE, Up to 30m IR range, IP68 & IK10 protection, EN50155, EN50121, Intensified mechanic design, Built-in Heater and demisting.

Up to 1920×1080 @ 30 fps for real-time output
ROI and SVC are adopted with high compression ratio, flexible disposure and low bitrate
Code smoothness setting for different requirements of image quality and fluency
PoE power supply is supportable
IR cut filter with auto switch for day & night surveillance
Efficient infrared array light, low power consumption, irradiating distance reaching up to 30m
3D digital noise reduction
Support two streams and cellphone surveillance
Rotate mode, BLC, DWDR and auto electric shutter for different environment
Three-axis adjustment for convenient installation
IP68 level waterproof and dustproof with high reliability.
Function: Heartbeat, mirror, one-key reset, etc.
Heater for demisting
Vandal-proof: IK10, IP68
Professional certifications: EN 50155, EN 50121

Camera
Image Sensor:	1/3" Progressive Scan CMOS
Min. Illumination:	0.01 Lux @(F1.2,AGC ON), 0 Lux with IR 0.028Lux @(F2.0,AGC ON) ,0 Lux with IR
Shutter time:	1/3s~1/100,000s
Lens:	6mm @F2.0 Angle of view: 46°
Lens Mount:	M12
Adjustment Range:	Pan: -15°-15°, Tilt: 0~30°, Rotation: -90°-90°
Day& Night:	IR cut filter with auto switch
Wide Dynamic Range:	Digital WDR
Digital noise reduction:	3D DNR
Compression Standard
Video Compression:	H.264/MJPEG
H.264 code profile:	Base Line Profile/Main Profile
Video bit rate:	32Kbps~8Mbps
Audio Compression:	G.711/G.722.1/G.726/MP2L2
Audio bit rate:	64Kbps(G.711)/16Kbps(G.722.1)/32-128Kbps(MP2L2)
Dual Stream:	Yes
Max. Image Resolution:	1920 x 1080
Frame Rate:	50Hz: 25fps (19201080,1280 × 960,1280 × 720) 60Hz: 30fps (19201080,1280 × 960,1280 × 720)
Image Settings:	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC:	Yes, zone optional
ROI:	support
3D DNR:	support
Network
Network Storage:	NAS (Support NFS,SMB/CIFS)
Alarm Trigger:	Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict
Protocols:	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function:	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility:	ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface:	1 RJ45 10M / 100M Ethernet interface
General
Operating Conditions:	-40 °C ~ 70 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:	12 V DC ± 10%, PoE (802.3at)
Power Consumption:	9W MAX
Impact Protection:	IK10 Protection Level
Weather Proof:	IP68
IR Range:	30 meters
Dimensions:	163.7 × 122.5 × 65.1
Weight:	900g (1.98lb)
