Manufacturer: Hikvision

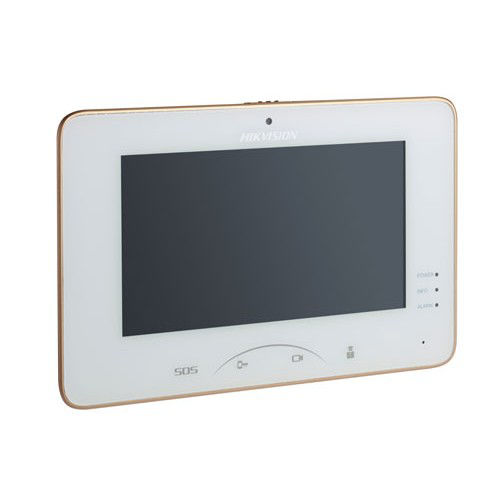

DS-KH8301-IM ROOM STATION WiFi

Video Intercom Indoor Station with 7-inch Touch Screen
SKU: 104-829

Hikvision Gen1 DS-KH8301-WT hard-wired LAN / WiFi Video Intercom 7" Room Station.

7“ Touch-Screen Indoor Station, 7-inch Colorful TFT LCD, display resolution: 1024 x 600, 10/100Mbps Ethernet, WiFi, 8-ch alarm input, 24V Power Over Network Cable / 12 VDC.


Video/Audio Functions

  • HD video surveillance (Door Station and Sites IP Cameras)
  • 7-inch colorful FTF LCD with resolution 1024 x 600
  • Capacitive touch screen and touch keys

Up to 6 Door Stations, 6 Room Stations and 1 App Account can be connected to any one system.

  • Hands-free audiovisual communication with the door station and the master station in the intercom system
  • WiFi & LAN
  • 8-ch zone alarm supported
  • Panic call supported
  • Supports monitoring door stations and external cameras
  • Remote door unlocking
  • High-Performance Embedded SOC Processor
  • TF card supported for additional features, such as a photo snapshot of Visitors.
System Parameters
Processor: High-Performance Embedded SOC Processor
Operation System: Embedded Linux Operation System
Memory: 256M
Video Parameters
Camera: CMOS 0.3 MP, Mechanical Switch
Video Compression Standard: H.264
Resolution: 1024 x 600
Video frame rate: PAL: 25 fps, NTSC: 30 fps
Display Parameters
Display Screen: 7-Inch Colorful TFT LCD
Display Resolution: 1024 × 600
Operation Method: Capacitive Touch Screen, Touch Key
Operation interface: Flattened UI Operation Interface
Audio Parameters
Audio Input: Built-in Omnidirectional Microphone
Audio Output: Built-in Loudspeaker
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation
Network Parameters
Ethernet: 10/100 Mbps Self-Adaptive Ethernet
Network Protocol: TCP/IP, RTSP
Alarm Parameters
Alarm Input: 8-ch Alarm Input Sensor
Device Interfaces
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
RS-485: 1 RS-485 Half-Duplex Port
I/O Output: 2
TF Card (micro SD card): TF Card, Support Max. 32GB
General
Power Supply: 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
Power Consumption: ≤10 W
Working Temperature: -10° C to + 55° C (14° F to 131° F)
Working Humidity: 10% to 90%
Dimensions(L × W × H): 217 mm × 142 mm × 26 mm (8.5" × 5.6" × 1.0")
Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
