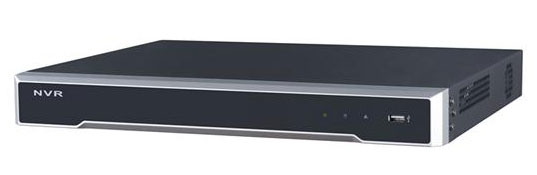

Hikvision DS-7616NI-12/16P V4 6TB HDD

DS-7616NI-12/16P V4 6TB HDD

SUPERSEDED BY M-SERIES 16ch NVR, see 114-436-6

SKU: 104-063-6

Overview
Downloads
Features
Specifications
Mobile Apps

16 Channel NVR with V4 GUI

The DS-7616NI-I2/16P is an Embedded 16 Channel Plug and Play NVR is a new generation recorder developed by Hikvision independently which has multiple advanced technologies, such as audio and video decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and/or interfaces with other devices to form a comprehensive surveillance system. The DS-7608NI-I2/8P (8 Channel) and DS-7616NI-I2/16P (16 Channel) NVRs are widely applied in the areas of finance, public security, military, communication, transportation, education, etc

DVR is supplied with 1 x 6TB HDD Fitted

Third-party network cameras supported
Up to 12 Megapixels resolution recording
Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
8/16-ch network cameras can be connected with 80M/160M incoming bandwidth
Up to 2 SATA interfaces (Supports 6TB HDD)
Plug & Play with up to 16 independent PoE network interfaces
Support dual-os to ensure high reliability of system running
Support various VCA detection alarm and VCA search
Support H.265/H.264/H.264+/MPEG4 video formats

Video/Audio Input
IP video input:	16-ch
Two-way audio input:	1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth:	160Mbps
Outgoing bandwidth:	256Mpbs
Remote connection:	128
Video/Audio Output
HDMI Output:	1ch, resolution: 4K(38402160)/60Hz, 4K(38402160)/30Hz, 19201080P/60Hz, 16001200/60Hz, 12801024/60Hz, 1280720/60Hz, 1024*768/60Hz
Recording Resolution:	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:	1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:	16-ch
VGA Output:	1-ch, resolution: 19201080P/60Hz, 12801024/60Hz, 1280720/60Hz, 1024768/60Hz
Decoding
Live view / Playback:	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:	4-ch@8MP,16-ch@1080P
Hard Disk
SATA:	2 SATA interfaces for 2 HDDs
Capacity:	Up to 6TB capacity for each HDD
External Interface
Network Interface:	1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface:	RS-232
USB Interface:	Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm In:	4-ch
Alarm Out:	1-ch
POE
Interface:	16 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power:	200W
Supported Standard:	AF and AT
General
Power Supply:	100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE):	≤15 W
Working Temperature:	-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity:	10 % ~ 90 %
Chassis:	380 chassis
Dimensions:	380 × 290 ×45 mm (15.0"× 11.4" × 1.8")
Weight(without HDD):	≤ 3 Kg (6.6 lb)

Hikvision App Store

16 Channel NVR with V4 GUI

DVR is supplied with 1 x 6TB HDD Fitted
