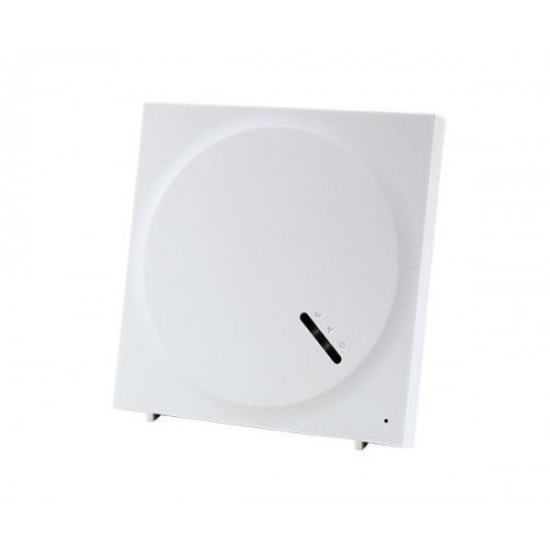

NESS G1 ZWAVE GATEWAY

Universal Z-Wave Controller

SKU: 101-800

Overview
Specifications
Downloads

The Z-Wave Gateway is a Smart Home Solution providing control of Z-Wave devices in your house via iPhone/iPad and Android mobiles/pads, or the free zComms app.

Easy setup:

Connect the gateway to the network
Download the Ness ZComms app on your iPhone/iPad or Android
Control everything by the gateway ID/password

Voice control through Google Home is supported, so you can turn on the light or thermostat or change the light color anytime by just saying it.

Supports Z-wave devices control, room control and scene control.
Control up to 120 Z-Wave devices.
Control up to 40 rooms, each room allows a max of 120 devices.
Control up to 60 scenes, each scene allows 6 events and 12 actions.
Supports Google Home.
Supports Geo-Sense.
Supports plug&play IP cameras.(The specific IP camera models - Refer Ness Part No 101-803 and 101-804)
Plug & play by ID/password.
Bundled with easy management software Ness zComms App
Push notification on iPhone/iPad and Android for device and scene events.
Internal real-time clock
Watchdog function to prevent system failure.

NOTE
There is an outstanding issue with Apple devices running iOS 14+ in combination with Telstra as the service provider.
Telstra mobile uses IPv6 addressing which is not supported by G1 Z-Wave gateway. There no known issues with Android devices.

NOTE2
Compatible with D8/D16 V6.0 and above.
Control of D8/D16 outputs via zComms app requires D8/D16 V7.8 and above.

Further detail PRODUCT BULLETIN page

101-800 Network compatibility table

Models	Ness G1 Z-Wave Gateway
Power	DC 5V, 1.5A
Processors	RISC CPU
Network Interface	Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45
Z-Wave Module	Sigma Design 500 series module Tx RF Power -26 ~ 2 dBm. Range: 100 meters open site 921.42 MHz
Buttons	One reset button, to factory default settings, One WPS button for automatic WiFi setup
Indicators	One LED for Internet connection status indication One LED for Ethernet connection indication One LED for Z_wave signal indication
Speaker	Built-in 0.5W speaker for device inclusion/exclusion status indication
Installation	Plug & play by ID/password.
Management and Maintenance	Management software Ness zComms for multi-gateway management, Firmware upgrades via FTP
Supported Protocols	IPv4, HTTP, TCP, ICMP, UDP, SNTP, FTP, DHCP, ARP, DNS, PPPoE, etc.
Accessories Included	Power adaptor, RJ45 Ethernet cable, quick installation guide, ID/Password card.
App	App Ness zComms for Android and iPhone/iPad
Alarm and Event Management	Push notification on iPhone/iPad and Android devices.
Dimensions (HxWxD)	96 x 96 x 21 mm
Weight	129 g, incl. gateway bracket, excl. power adaptor
Approvals	EMC - CE, FCC Part 15 Subpart B Class B Wireless RF - CE, FCC Part 15 Subpart C Power supply: CE, FCC, UL, EN 60950
Operating conditions	0-50 °C Humidity 20 – 80% RH (non-condensing)
