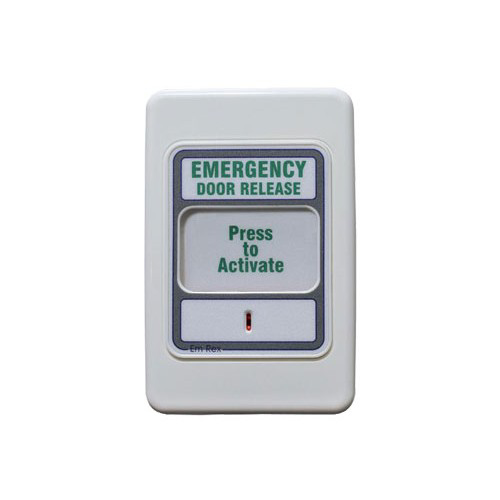

Em Rex Emergency Exit Device - Non-Break-Glass Emergency door release unit.
Push to activate latching operation.
Use the pin tool supplied to reset.
Features:
- Field resettable unit
- Used in an access control system to work in conjunction with an exit button to comply with building codes for emergency egress
- No breaking of glass to operate
- Red indication bar also shows when the unit has been activated
- Built-in sounder which operates when activated plus an ancillary input to turn the sounder on remotely
- Matches the Prox Rex unit (101-009)
- Minimal moving parts
- Text and graphic Lexan overlay is easy to clean and is fade resistant
- 1 gang profile – 75mm x 115mm - fits standard electrical flush box
- Power requirement 9 to 16Vdc if using on board sounder
- Current draw 10ma at 13.6Vdc
- 2 sets of NO and NC / voltage-free / dry-contact / outputs
- Contacts are rated at 1amp 12vdc capacitive load
- The faceplate has a Lexan overlay which will not deteriorate over time and easily cleaned.
- CE Certified.
