D8X4G W SILVER LCD KP

SKU: K-9307

Overview
FEATURES
SPECIFICATIONS
DOWNLOADS
Mobile Apps

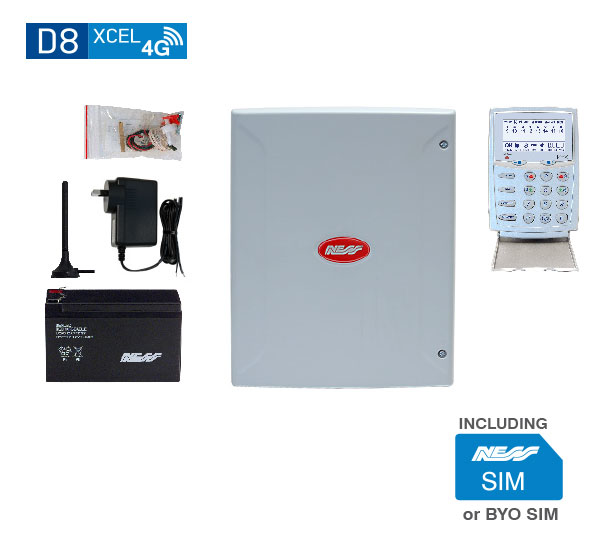

D8XCEL4G PANEL with KPX+ Silver Keypad inc SIM

CONTACT ID ADVISORY
Ness D8/D16XCEL 4G panels use an analogue voice channel to transmit CONTACT ID reports to a central station.

Owing to signal distortion and timing inconsistencies introduced by analog-to-digital conversion over VOIP, the reliability of CONTACT ID transmission cannot be guaranteed, and its use is not recommended.

DOES THIS AFFECT YOU?

a) If your D8/D16XCEL 4G panels are used for SMS self-monitoring (not reporting back-to-base) then you are not affected and you don't need to make any changes.

b) If your D8/D16XCEL 4G panels are reporting to a central station via Contact ID you must reprogram your panels to use ArmorIP.
Link to Bulletin and instructions.

c) If your panels are already monitored using ArmorIP protocol you are not affected.

Made In Australia by NESS

• 8 or 16 alarm zones (D8XCEL4G/D16XCEL4G)
• Supports up to 3 mixed keypads (Navigator/Saturn/LCD) or 4 Navigator keypads
• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.
• Optional Ness Radio Interface for fully integrated wireless security.
• Programmable Two Area partitioning can split the panel into two independent areas plus a common area.
• Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time based user control.
• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.
• Supports control via internet using Ness iComms/aComms iPhone/iPad and Android apps and optional ethernet adapter.
• Home Mode allows partial arming, (eg, perimeter security overnight).
• Day Mode feature allows daytime monitoring of fire doors, coolrooms etc.
• Temporary Day Zone feature allows easy enabling/disabling of Day Mode.
• Keypad Panic and Duress feature.
• Two button arming feature.
• Fire Alarm feature with different siren tones.
• Highly flexible zone to output mapping.
• Onboard Vibration Sensor Analyser with programmable sensitivity. Use with Nessensor™ vibration sensors.
• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).
• Siren chirp and strobe flash on arming with radio key.
• Quiet chirps option on arm/disarm by radio key.
• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.
• 4 programmable auxiliary outputs (Up to 8 Aux outputs optional).
• Optional output expander.
• Enhanced serial data input/output via RS232.
• Automatic reset fuses.
• Programmable Reset Output lockout.
• 30 event memory from KPX and Saturn keypads. 80 event memory can be accessed using Navigator keypad or NessComms™.
• Standard defaults to suit most applications.
• Easy programming by keypad or NessComms™ software by direct connect.
• All programming data is permanently stored in a non-volatile memory.
• All inputs and outputs are heavily protected against lightning and high voltage supply transients.
• High efficiency DC power supply with dual 17VAC/20VDC power input

Communicator
• 4G Communicator onboard
• Direct-connect upload/download using NessComms™ software.
• View system status and arm/disarm using NessComms™.
• Remote control of outputs via telephone with voice prompts.
• Operation via SMS messaging
• Programming via SMS
• Alarm reports via SMS self-monitoring or Central Station
• Central Station monitoring in ARMOR IP and CID formats
• Remote operation via the free NessXCEL SMS app

BOX DIMENSIONS (W x H x D)	235 x 300 x 90 mm (Plastic housing)
POWER INPUT	17VAC or 20VDC
AUX POWER OUTPUT	13.8v DC @ 800mA
QUIESCENT CURRENT DRAW	80mA with 1 keypad
RECHARGEABLE BATTERY	12 volt 7.0 Amp/hour Sealed lead Acid
BATTERY CHARGING CURRENT	350mA maximum, current limited
DYNAMIC BATTERY TEST	Backup battery is tested under load, hourly and on arming
FUSES	2 Amp auto resetting / Siren output & Reset output. 500mA auto resetting / 12 volt auxiliary outputs. 200 mA auto resetting / Strobe output
ZONE OUTPUTS	8 or 16 zone inputs (D8XCEL4G/D16XCEL4G) 2 x 24hr tamper inputs
END OF LINE RESISTOR	Choice of 12 programmable values including N/C. Default 2200 Ohms (2.2k)
MAXIMUM KEYPADS	3 (Sold Seperatly).
INTEGRATED RADIO OPTIONS	Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 16 radio zones
SERIAL HEADER	Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
INTEGRATED ACCESS CONTROL	Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
SIREN OUTPUT	On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
STROBE OUTPUT	12v DC timed output. Maximum 2 x 1 Watt strobe lights
RESET OUTPUT	12v DC timed output. Max. 3 x 12v piezo screamers
EQUIPMENT POWER OUTPUT	13.8v DC output for powering detectors and other equipment. Maximum 500mA
AUX OUTPUTS	Multi-pin connectors provides outputs Aux1~4, Aux5~8
