D8X4G IN 14" METAL HOUSING

D8XCEL4G IN 14” METAL HOUSING NO KEYPAD INC SIM

SKU: K-9014

Overview
FEATURES
SPECIFICATIONS
DOWNLOADS
Mobile Apps

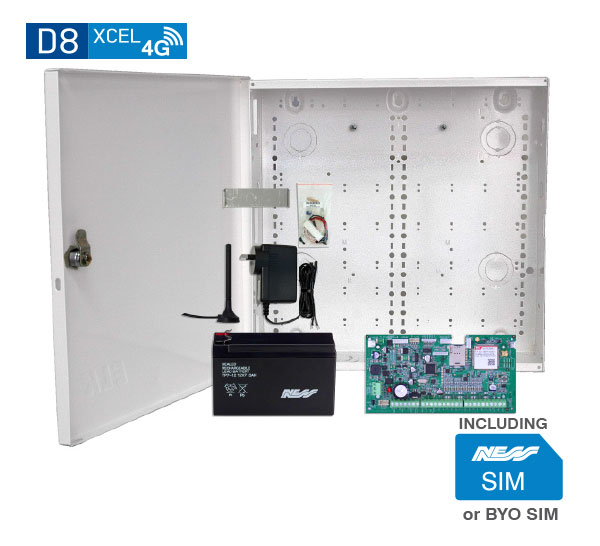

D8XCEL 4G with a 14" metal housing providing additional space for accessory boards.

Includes:

D8XCEL4G
20VDC Plug pack
12V 7Ah Backup Battery
14" Metal Housing

* Keypads sold separately.

Made In Australia by NESS

• 8 or 16 alarm zones (D8XCEL4G/D16XCEL4G)
• Supports up to 3 mixed keypads (Navigator/Saturn/LCD) or 4 Navigator keypads
• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.
• Optional Ness Radio Interface for fully integrated wireless security.
• Programmable Two Area partitioning can split the panel into two independent areas plus a common area.
• Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time based user control.
• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.
• Supports control via internet using Ness iComms/aComms iPhone/iPad and Android apps and optional ethernet adapter.
• Home Mode allows partial arming, (eg, perimeter security overnight).
• Day Mode feature allows daytime monitoring of fire doors, coolrooms etc.
• Temporary Day Zone feature allows easy enabling/disabling of Day Mode.
• Keypad Panic and Duress feature.
• Two button arming feature.
• Fire Alarm feature with different siren tones.
• Highly flexible zone to output mapping.
• Onboard Vibration Sensor Analyser with programmable sensitivity. Use with Nessensor™ vibration sensors.
• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).
• Siren chirp and strobe flash on arming with radio key.
• Quiet chirps option on arm/disarm by radio key.
• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.
• 4 programmable auxiliary outputs (Up to 8 Aux outputs optional).
• Optional output expander.
• Enhanced serial data input/output via RS232.
• Automatic reset fuses.
• Programmable Reset Output lockout.
• 30 event memory from KPX and Saturn keypads. 80 event memory can be accessed using Navigator keypad or NessComms™.
• Standard defaults to suit most applications.
• Easy programming by keypad or NessComms™ software by direct connect.
• All programming data is permanently stored in a non-volatile memory.
• All inputs and outputs are heavily protected against lightning and high voltage supply transients.
• High efficiency DC power supply with dual 17VAC/20VDC power input

Communicator
• 4G Communicator onboard
• Direct-connect upload/download using NessComms™ software.
• View system status and arm/disarm using NessComms™.
• Remote control of outputs via telephone with voice prompts.
• Operation via SMS messaging
• Programming via SMS
• Alarm reports via SMS self-monitoring or Central Station
• Central Station monitoring in ARMOR IP and CID formats
• Remote operation via the free NessXCEL SMS app

METAL BOX DIMENSIONS	14" Housing 362(W) x 362(H) x 90(D)mm
	28" Housing 362(W) x 710(H) x 115(D)mm
POWER INPUT	17VAC or 20VDC
AUX POWER OUTPUT	13.8v DC @ 800mA
QUIESCENT CURRENT DRAW	80mA with 1 keypad
RECHARGEABLE BATTERY	12 volt 7.0 Amp/hour Sealed lead Acid
BATTERY CHARGING CURRENT	350mA maximum, current limited
DYNAMIC BATTERY TEST	Backup battery is tested under load, hourly and on arming
FUSES	2 Amp auto resetting / Siren output & Reset output. 500mA auto resetting / 12 volt auxiliary outputs. 200 mA auto resetting / Strobe output
ZONE OUTPUTS	8 or 16 zone inputs (D8XCEL4G/D16XCEL4G) 2 x 24hr tamper inputs
END OF LINE RESISTOR	Choice of 12 programmable values including N/C. Default 2200 Ohms (2.2k)
MAXIMUM KEYPADS	3 (Sold Seperatly).
INTEGRATED RADIO OPTIONS	Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 16 radio zones
SERIAL HEADER	Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
INTEGRATED ACCESS CONTROL	Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
SIREN OUTPUT	On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
STROBE OUTPUT	12v DC timed output. Maximum 2 x 1 Watt strobe lights
RESET OUTPUT	12v DC timed output. Max. 3 x 12v piezo screamers
EQUIPMENT POWER OUTPUT	13.8v DC output for powering detectors and other equipment. Maximum 500mA
AUX OUTPUTS	Multi-pin connectors provides outputs Aux1~4, Aux5~8
